Name: Exhaust Sensors And Modules (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Short Wheelbase, J-WLTP Emission, ULEV 125 Emission, EU6D - Final (Diesel) Emission) ((V) FROMM2000001)
Rating: 5.0 (1 reviews)

Exhaust Sensors And Modules (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Short Wheelbase, J-WLTP Emission, ULEV 125 Emission, EU6D - Final (Diesel) Emission) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Exhaust Sensors And Modules (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Short Wheelbase, J-WLTP...

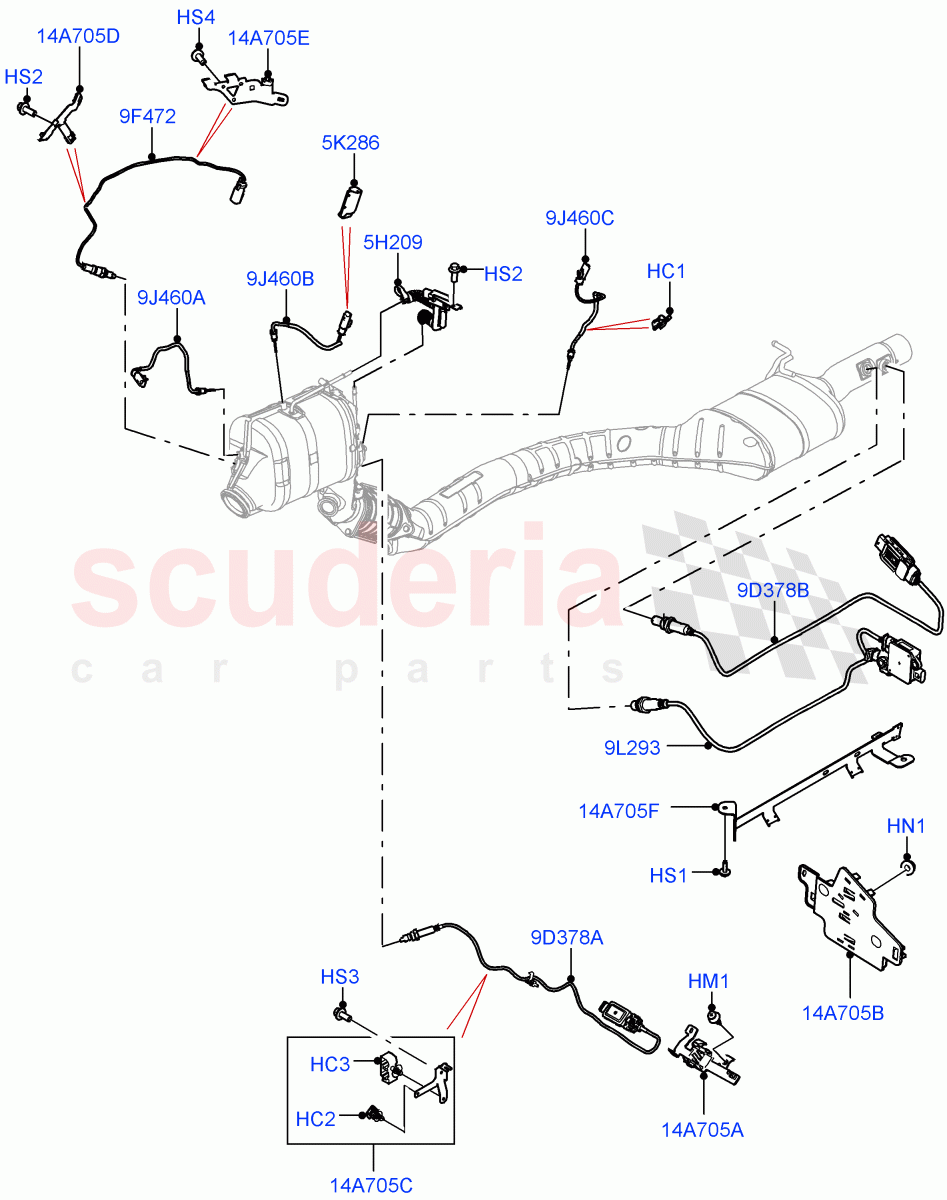

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR063050	CLIP	$1.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011519	CLIP	$2.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR125423	CLIP - RETAINING	$4.12	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500040	FASTENER	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR066438	SCREW	$3.07	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS106146	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133155	SENSOR - EXHAUST GAS PRESSURE	$123.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139159	HEAT SHIELD - CONNECTOR	$37.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125273	SENSOR - EXHAUST GAS - OXYGEN	$351.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131451	BRACKET - WIRING CONNECTOR	$266.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127505	SENSOR - NOX TRAP TEMPERATURE	$786.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127506	SENSOR - NOX TRAP TEMPERATURE	$773.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR180808	SENSOR - EXHAUST GAS - TEMPERATURE	$138.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125271	SENSOR - EXHAUST GAS - TEMPERATURE	$160.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125272	SENSOR - EXHAUST GAS - TEMPERATURE	$171.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113308	BRACKET	$30.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131449	BRACKET - WIRING CONNECTOR	$26.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134618	BRACKET	$16.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141646	BRACKET	$47.47	To Order
	LR156718	BRACKET	$49.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141647	BRACKET	$49.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136793	BRACKET	$19.70	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR063050	CLIP	LR063050 CLIP 8-9MM X 3-6MM / From: M2000001	$1.79	2
HC2	LR011519	CLIP IN STOCK	LR011519 CLIP 9.5 X 6 X 2 / From: M2000001 IN STOCK	$2.07	1
HC3	LR125423	CLIP - RETAINING	LR125423 CLIP - RETAINING NOX - Sensor / From: M2000001	$4.12	1
HM1	RYQ500040	FASTENER IN STOCK	RYQ500040 FASTENER 6.25 x 1.6/6MM / From: M2000001 IN STOCK	$0.61	2
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: M2000001 IN STOCK	$1.47	1
HS1	LR066438	SCREW	LR066438 SCREW Hexagonal Head, M6 X 20MM / From: M2000001	$3.07	2
HS2	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: M2000001 IN STOCK	$1.24	2
HS3	FS106146	SCREW	FS106146 SCREW Hexagonal Head, M6 X 14MM, NOX - Sensor / From: M2000001	$0.47	1
HS4	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: M2000001	$2.31	3
5H209	LR133155	SENSOR - EXHAUST GAS PRESSURE	LR133155 SENSOR - EXHAUST GAS PRESSURE Exhaust Gas Pressure, Includes Bracket / From: M2000001	$123.45	1
5K286	LR139159	HEAT SHIELD - CONNECTOR	LR139159 HEAT SHIELD - CONNECTOR Connector, Sensor / From: M2000001	$37.14	1
9D378A	LR127505	SENSOR - NOX TRAP TEMPERATURE	LR127505 SENSOR - NOX TRAP TEMPERATURE Upper / From: M2000001	$786.73	1
9D378B	LR127506	SENSOR - NOX TRAP TEMPERATURE	LR127506 SENSOR - NOX TRAP TEMPERATURE Lower / From: M2000001	$773.97	1
9F472	LR125273	SENSOR - EXHAUST GAS - OXYGEN	LR125273 SENSOR - EXHAUST GAS - OXYGEN Hego Sensor / From: M2000001	$351.09	1
9J460A	LR180808	SENSOR - EXHAUST GAS - TEMPERATURE	LR180808 SENSOR - EXHAUST GAS - TEMPERATURE Front / From: M2000001	$138.61	1
9J460B	LR125271	SENSOR - EXHAUST GAS - TEMPERATURE	LR125271 SENSOR - EXHAUST GAS - TEMPERATURE Middle / From: M2000001	$160.21	1
9J460C	LR125272	SENSOR - EXHAUST GAS - TEMPERATURE	LR125272 SENSOR - EXHAUST GAS - TEMPERATURE Rear / From: M2000001	$171.82	1
9L293	LR131451	BRACKET - WIRING CONNECTOR	LR131451 BRACKET - WIRING CONNECTOR From: M2000001	$266.19	1
14A705A	LR113308	BRACKET	LR113308 BRACKET NOX - Sensor, Upper / From: M2000001	$30.57	1
14A705B	LR131449	BRACKET - WIRING CONNECTOR	LR131449 BRACKET - WIRING CONNECTOR Lower, NOX - Sensor / From: M2000001	$26.29	1
14A705C	LR134618	BRACKET	LR134618 BRACKET Front, NOX - Sensor / From: M2000001	$16.42	1
14A705D	LR141646	BRACKET	LR141646 BRACKET Front, HEGO Bracket / From: M2000001 / To: N2077818	$47.47	1
14A705D	LR156718	BRACKET	LR156718 BRACKET Front, HEGO Bracket / From: N2077819	$49.15	1
14A705E	LR141647	BRACKET	LR141647 BRACKET HEGO Bracket, Rear / From: M2000001	$49.15	1
14A705F	LR136793	BRACKET	LR136793 BRACKET Downstream, NOX - Sensor / From: M2000001	$19.70	1
