Exhaust Fluid Injection System (Tank And Filler, Nitra Plant Build) (3.0L Aj20D6 Diesel High, Short...

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Exhaust Fluid Injection System (Tank And Filler, Nitra Plant Build) (3.0L AJ20D6 Diesel High, Short...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
LR033245 BOLT $3.60 To Order
Photo Part No Description Price (each) Stock
LR093055 BOLT $1.16 To Order
Photo Part No Description Price (each) Stock
LR133555 NUT $1.10 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR131972 NUT - HEX. $1.22 To Order
Photo Part No Description Price (each) Stock
RYG501590 SCREW $1.00 IN STOCK
Photo Part No Description Price (each) Stock
LR072612 SCREW $2.75 To Order
Photo Part No Description Price (each) Stock
LR132683 STUD $5.37 To Order
Photo Part No Description Price (each) Stock
LR115628 SPACER - STRIKER $7.65 To Order
Photo Part No Description Price (each) Stock
LR115627 PLUG - BLANKING $6.29 To Order
Photo Part No Description Price (each) Stock
LR133194 KIT - FIXING PARTS $49.46 To Order
Photo Part No Description Price (each) Stock
LR141952 TANK&SHIELD - DIESEL EXHAUST FLUID $1,080.21 To Order
Photo Part No Description Price (each) Stock
LR131419 HOSE - TANK $152.38 To Order
LR155915 HOSE - TANK $147.47 To Order
Photo Part No Description Price (each) Stock
LR133195 PUMP - DIESEL EXHAUST FLUID $470.22 To Order
Photo Part No Description Price (each) Stock
LR125664 BUSH - INSULATING $3.62 To Order
Photo Part No Description Price (each) Stock
LR132682 BRACKET - FILLER PIPE $32.24 To Order
Photo Part No Description Price (each) Stock
LR115637 CAP - FILLER $14.59 To Order
Photo Part No Description Price (each) Stock
LR129419 BRACKET - FUEL TANK $49.37 To Order
Photo Part No Description Price (each) Stock
LR131414 BRACKET - FUEL TANK $65.83 To Order
Photo Part No Description Price (each) Stock
LR132637 SHIELD - TANK $316.90 To Order
LR173831 SHIELD - TANK $311.50 To Order
Photo Part No Description Price (each) Stock
LR132653 SHIELD - TANK $145.93 To Order
Photo Part No Description Price (each) Stock
LR132655 SHIELD - TANK $145.93 To Order
View All

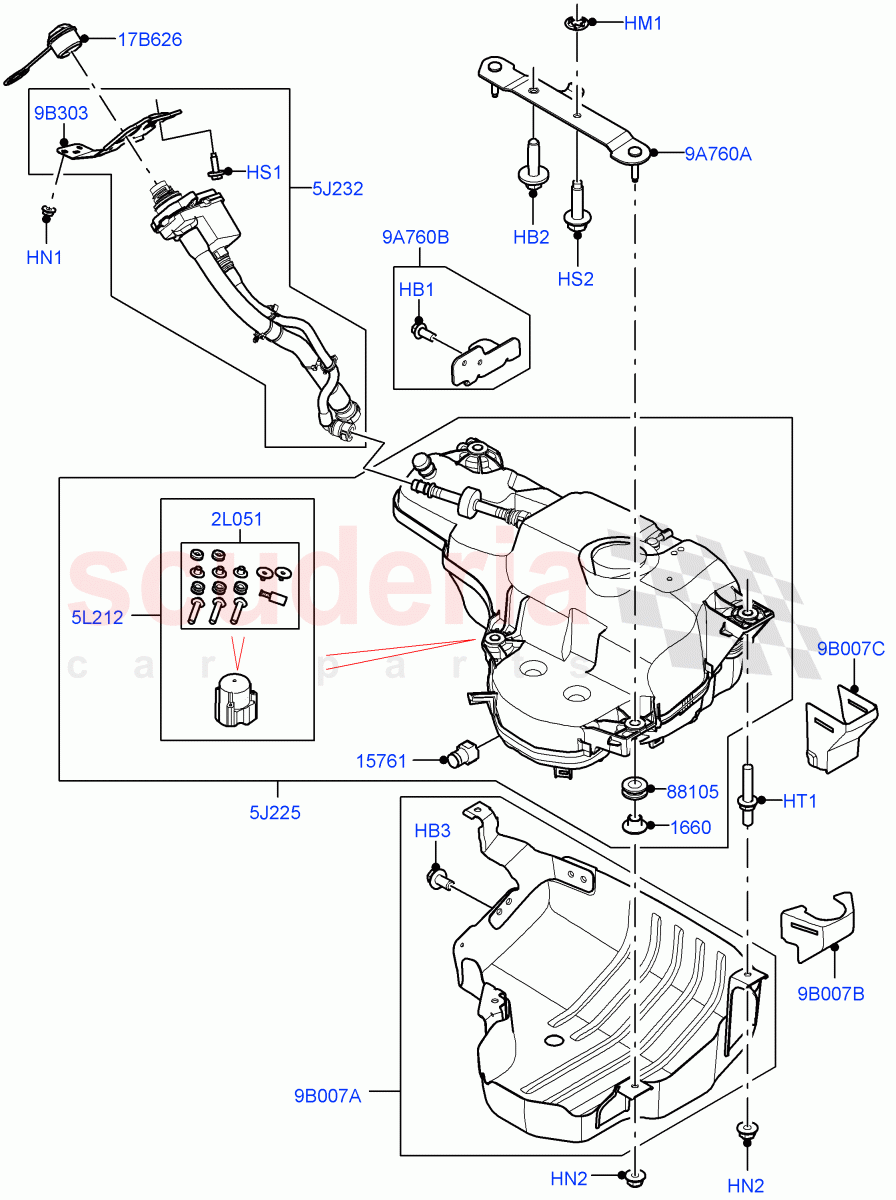

Exhaust Fluid Injection System (Tank And Filler, Nitra Plant Build) (3.0L AJ20D6 Diesel High, Short Wheelbase, With Diesel Exh Fluid Emission Tank, Standard Wheelbase) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM / From: M2000001
IN STOCK 		$2.29 2
HB2 LR033245
BOLT
M12 x 40MM / From: M2000001 		$3.60 1
HB3 LR093055
BOLT
M8 X 16, Shield / From: M2000001 		$1.16 4
HM1 LR133555
NUT
M12, Starlock / From: M2000001 		$1.10 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: M2000001
IN STOCK 		$1.46 2
HN2 LR131972
NUT - HEX.
M10 / From: M2000001 		$1.22 6
HS1 RYG501590
SCREW
Hexagonal Head, M6 X 20MM / From: M2000001
IN STOCK 		$1.00 1
HS2 LR072612
SCREW
Hexagonal Head, M12 X 45MM / From: M2000001 		$2.75 1
HT1 LR132683
STUD
M10 X 45MM + M10 X 22MM / From: M2000001 		$5.37 2
2L051 LR133194
KIT - FIXING PARTS
To Pump / From: M2000001 		$49.46 1
5J225 LR141952
TANK&SHIELD - DIESEL EXHAUST FLUID
Complete Assembly / From: M2000001 		$1,080.21 1
5J232 LR131419
HOSE - TANK
Assembly / From: M2000001 / To: N2077719 		$152.38 1
5J232 LR155915
HOSE - TANK
Assembly / From: N2077720 		$147.47 1
5L212 LR133195
PUMP - DIESEL EXHAUST FLUID
Kit Includes Fitting Parts, Service Kit / From: M2000001 		$470.22 1
9A760A LR129419
BRACKET - FUEL TANK
Front / From: M2000001 		$49.37 1
9A760B LR131414
BRACKET - FUEL TANK
Rear / From: M2000001 		$65.83 1
9B007A LR132637
SHIELD - TANK
From: M2000001 / To: N2103303 		$316.90 1
9B007A LR173831
SHIELD - TANK
From: N2103304 		$311.50 1
9B007B LR132653
SHIELD - TANK
Front, Thermal / From: M2000001 		$145.93 1
9B007C LR132655
SHIELD - TANK
Rear, Thermal / From: M2000001 		$145.93 1
9B303 LR132682
BRACKET - FILLER PIPE
Filler Pipe / From: M2000001 		$32.24 1
17B626 LR115637
CAP - FILLER
From: M2000001 		$14.59 1
1660 LR115628
SPACER - STRIKER
From: M2000001 		$7.65 4
15761 LR115627
PLUG - BLANKING
From: M2000001 		$6.29 1
88105 LR125664
BUSH - INSULATING
From: M2000001 		$3.62 4
