Front Seat Base (Standard Wheelbase)

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Front Seat Base (Standard Wheelbase)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR024165 BOLT $2.91 To Order
Photo Part No Description Price (each) Stock
HYP500270 BOLT $6.32 To Order
Photo Part No Description Price (each) Stock
LR096815 BOLT $0.98 To Order
Photo Part No Description Price (each) Stock
LR039018 SCREW $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR085589 MOULDING - MANUAL BUCKLE RETENTION $50.43 To Order
Photo Part No Description Price (each) Stock
LR089419 BAR - ISOFIX $117.53 To Order
LR089420 BAR - ISOFIX $117.53 To Order
Photo Part No Description Price (each) Stock
LR084504 BRACKET - SENSOR MOUNTING $38.93 To Order
Photo Part No Description Price (each) Stock
LR162957 KIT - SEAT CUSHION FRAME $674.46 To Order
LR162959 KIT - SEAT CUSHION FRAME $615.94 To Order
Photo Part No Description Price (each) Stock
LR129588 COVER - FRONT SEAT TRACK SUPPORT $54.24 To Order
LR129589 COVER - FRONT SEAT TRACK SUPPORT $54.24 To Order
LR129601 COVER - FRONT SEAT TRACK SUPPORT $54.24 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR129593 COVER - FRONT SEAT TRACK SUPPORT $54.24 To Order
LR129596 COVER - FRONT SEAT TRACK SUPPORT $54.24 To Order
LR129607 COVER - FRONT SEAT TRACK SUPPORT $54.24 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR129597 COVER - FRONT SEAT TRACK SUPPORT $54.24 To Order
LR129598 COVER - FRONT SEAT TRACK SUPPORT $54.24 To Order
LR129609 COVER - FRONT SEAT TRACK SUPPORT $54.24 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR129590 COVER - FRONT SEAT TRACK SUPPORT $54.24 To Order
LR129592 COVER - FRONT SEAT TRACK SUPPORT $54.24 To Order
LR129603 COVER - FRONT SEAT TRACK SUPPORT $54.24 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR129297 FRAME - SEAT $500.25 To Order
LR129300 FRAME - SEAT $473.62 To Order
LR156724 FRAME - SEAT $456.85 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR129299 FRAME - SEAT $962.13 To Order
LR129302 FRAME - SEAT $983.08 To Order
LR156727 FRAME - SEAT $1,201.72 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR154975 MOTOR - SEAT ADJUSTER $286.70 To Order
LR154976 MOTOR - SEAT ADJUSTER $261.83 To Order
Photo Part No Description Price (each) Stock
LR154842 MOTOR - SEAT ADJUSTER $344.49 To Order
LR154843 MOTOR - SEAT ADJUSTER $344.49 To Order
Photo Part No Description Price (each) Stock
LR132820 TRAY - PACKAGE $61.02 To Order
Photo Part No Description Price (each) Stock
LR132823 TRAY - PACKAGE $56.10 To Order
View All

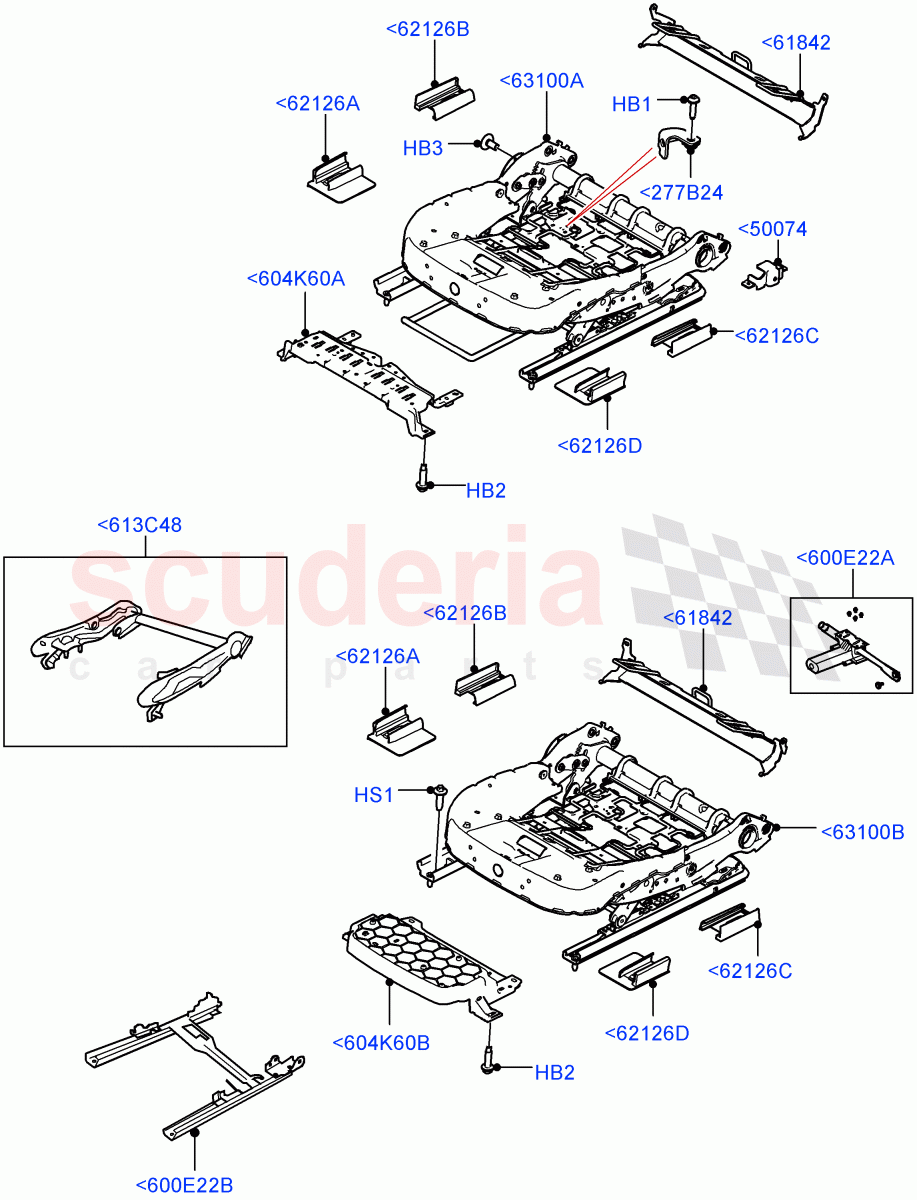

Front Seat Base (Standard Wheelbase) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<277B24 LR084504
BRACKET - SENSOR MOUNTING
(+)"CDN/MEX/USA", With Head Impact Crash Criteria 		$38.93 1
<600E22A LR154975
MOTOR - SEAT ADJUSTER
Seat Cushion Power Height / RH, Seat Height Adjust 		$286.70 1
<600E22A LR154976
MOTOR - SEAT ADJUSTER
Seat Cushion Power Height / LH, Seat Height Adjust 		$261.83 1
<600E22B LR154842
MOTOR - SEAT ADJUSTER
Seat Cushion Power Fore/Aft / RH, Fore/Aft Adjustment 		$344.49 1
<600E22B LR154843
MOTOR - SEAT ADJUSTER
Seat Cushion Power Fore/Aft / LH, Fore/Aft Adjustment 		$344.49 1
<604K60A LR132820
TRAY - PACKAGE
Seat Cushion Manual Fore/Aft, Seat Cushion Manual Height / RH/LH 		$61.02 2
<604K60B LR132823
TRAY - PACKAGE
Seat Cushion Power Fore/Aft, Seat Cushion Power Height / RH/LH 		$56.10 2
<613C48 LR162957
KIT - SEAT CUSHION FRAME
RH, Less Motor, Upper Frame 		$674.46 1
<613C48 LR162959
KIT - SEAT CUSHION FRAME
LH, Less Motor, Upper Frame 		$615.94 1
<50074 LR085589
MOULDING - MANUAL BUCKLE RETENTION
Seat Cushion Manual Fore/Aft, Seat Cushion Manual Height 		$50.43 4
<61842 LR089419
BAR - ISOFIX
Isofix Hard Point Attach-Front Pass, LHD / RH 		$117.53 1
<61842 LR089420
BAR - ISOFIX
Isofix Hard Point Attach-Front Pass, RHD / LH 		$117.53 1
<62126A LR129588
COVER - FRONT SEAT TRACK SUPPORT
Interior Environment Colour - Lunar / RH, Front, Outer 		$54.24 1
<62126A LR129589
COVER - FRONT SEAT TRACK SUPPORT
Internal Environment Colour - Ebony / RH, Front, Outer 		$54.24 1
<62126A LR129601
COVER - FRONT SEAT TRACK SUPPORT
Interior Environment Colour - Lunar / LH, Front, Outer 		$54.24 1
<62126A LR129602
COVER - FRONT SEAT TRACK SUPPORT
Internal Environment Colour - Ebony / LH, Front, Outer 		$50.16 1
<62126B LR129593
COVER - FRONT SEAT TRACK SUPPORT
Interior Environment Colour - Lunar / RH, Outer, Rear 		$54.24 1
<62126B LR129596
COVER - FRONT SEAT TRACK SUPPORT
Internal Environment Colour - Ebony / RH, Outer, Rear 		$54.24 1
<62126B LR129607
COVER - FRONT SEAT TRACK SUPPORT
Interior Environment Colour - Lunar / LH, Outer, Rear 		$54.24 1
<62126B LR129608
COVER - FRONT SEAT TRACK SUPPORT
Internal Environment Colour - Ebony / LH, Outer, Rear 		$54.24 1
<62126C LR129597
COVER - FRONT SEAT TRACK SUPPORT
Interior Environment Colour - Lunar / RH, Inner, Rear 		$54.24 1
<62126C LR129598
COVER - FRONT SEAT TRACK SUPPORT
Internal Environment Colour - Ebony / RH, Inner, Rear 		$54.24 1
<62126C LR129609
COVER - FRONT SEAT TRACK SUPPORT
Interior Environment Colour - Lunar / LH, Inner, Rear 		$54.24 1
<62126C LR129611
COVER - FRONT SEAT TRACK SUPPORT
Internal Environment Colour - Ebony / LH, Inner, Rear 		$54.24 1
<62126D LR129590
COVER - FRONT SEAT TRACK SUPPORT
Interior Environment Colour - Lunar / RH, Front, Inner 		$54.24 1
<62126D LR129592
COVER - FRONT SEAT TRACK SUPPORT
Internal Environment Colour - Ebony / RH, Front, Inner 		$54.24 1
<62126D LR129603
COVER - FRONT SEAT TRACK SUPPORT
Interior Environment Colour - Lunar / LH, Front, Inner 		$54.24 1
<62126D LR129604
COVER - FRONT SEAT TRACK SUPPORT
Internal Environment Colour - Ebony / LH, Front, Inner 		$54.24 1
<63100A LR129297
FRAME - SEAT
Less Seat Adjuster, Seat Cushion Manual Fore/Aft, Seat Cushion Manual Height / RH, Please Consider Repair Using Lower Level Components: LR154975-Height Adjustment; LR154842-Fore/Aft Adjustment / To: M2056050 		$500.25 1
<63100A LR129300
FRAME - SEAT
Less Seat Adjuster, Seat Cushion Manual Fore/Aft, Seat Cushion Manual Height / LH, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment / To: M2056050 		$473.62 1
<63100A LR156724
FRAME - SEAT
Less Seat Adjuster, Seat Cushion Manual Fore/Aft, Seat Cushion Manual Height / RH, Please Consider Repair Using Lower Level Components: LR154975-Height Adjustment; LR154842-Fore/Aft Adjustment / From: M2056051 		$456.85 1
<63100A LR156731
FRAME
Less Seat Adjuster, Seat Cushion Manual Fore/Aft, Seat Cushion Manual Height / LH, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment / From: M2056051 		$561.38 1
<63100B LR129299
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory, Seat Cushion Power Fore/Aft, Seat Cushion Power Height / RH, Please Consider Repair Using Lower Level Components: LR154975-Height Adjustment; LR154842-Fore/Aft Adjustment / To: M2056041 		$962.13 1
<63100B LR129302
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory, Seat Cushion Power Fore/Aft, Seat Cushion Power Height / LH, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment / To: M2056041 		$983.08 1
<63100B LR156727
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory, Seat Cushion Power Fore/Aft, Seat Cushion Power Height / RH, Please Consider Repair Using Lower Level Components: LR154975-Height Adjustment; LR154842-Fore/Aft Adjustment / From: M2056042 		$1,201.72 1
<63100B LR156734
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory, Seat Cushion Power Fore/Aft, Seat Cushion Power Height / LH, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment / From: M2056042 		$1,082.90 1
HB1 LR024165
BOLT
M5 X 12MM, Torx 		$2.91 2
HB2 HYP500270
BOLT
ECU, M6 x 25MM 		$6.32 -
HB3 LR096815
BOLT
Seat Cushion Manual Fore/Aft / Outer, Seat Frame 		$0.98 4
HS1 LR039018
SCREW
M10 x 56MM, Seat Frame To Floor
IN STOCK 		$1.46 -
