Airbag System

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Airbag System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033002 BOLT AND WASHER - TORX HEAD $1.51 To Order
Photo Part No Description Price (each) Stock
LR042803 BOLT $1.24 IN STOCK
Photo Part No Description Price (each) Stock
RYH500420 NUT AND WASHER - HEX. $0.44 IN STOCK
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
LR031341 NUT - HEX. $1.03 To Order
Photo Part No Description Price (each) Stock
VYP500060 SCREW $0.47 IN STOCK
Photo Part No Description Price (each) Stock
LR081401 SCREW $1.51 To Order
Photo Part No Description Price (each) Stock
LR129167 MONITOR - AIRBAG DIAGNOSTIC MODULE $551.27 IN STOCK
LR139831 MODULE - AIR BAG $553.10 IN STOCK
LR154987 MONITOR - AIRBAG DIAGNOSTIC MODULE $813.89 To Order
Photo Part No Description Price (each) Stock
LR043878 SENSOR - SIDE AIR BAG $130.28 To Order
Photo Part No Description Price (each) Stock
LR174887 BRACKET - AIR BAG $10.26 To Order
LR174888 Bracket - Instrument Panel $10.26 To Order
Photo Part No Description Price (each) Stock
LR133005 AIR BAG - CURTAIN $500.29 To Order
LR133012 AIR BAG - CURTAIN $500.29 To Order
LR133003 AIR BAG - CURTAIN $500.29 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR101226 SENSOR - AIR BAG $143.09 To Order
Photo Part No Description Price (each) Stock
LR129171 SENSOR - AIR BAG $132.25 To Order
Photo Part No Description Price (each) Stock
LR148217 SENSOR - AIR BAG $607.55 IN STOCK
Photo Part No Description Price (each) Stock
LR148218 SENSOR - AIR BAG $251.05 To Order
Photo Part No Description Price (each) Stock
LR131096 BRACKET - AIR BAG $112.60 To Order
LR131106 BRACKET - AIR BAG $367.70 To Order
LR143228 BRACKET - AIR BAG $112.60 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR133001 BRACKET - AIR BAG $314.01 To Order
LR132998 BRACKET - AIR BAG $120.89 To Order
Photo Part No Description Price (each) Stock
LR131102 BRACKET - AIR BAG $128.91 To Order
LR131092 BRACKET - AIR BAG $108.01 To Order
LR146699 BRACKET - AIR BAG $120.89 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR133043 AIR BAG $934.16 To Order
LR133047 AIR BAG $934.16 To Order
LR133054 AIR BAG $1,112.50 To Order
...and 10 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR133026 AIR BAG - PASSENGER $850.04 To Order
LR133025 AIR BAG - PASSENGER $850.04 To Order
Photo Part No Description Price (each) Stock
LR132506 SIDE AIR BAG $396.56 To Order
LR132515 SIDE AIR BAG $431.46 To Order
LR142566 SIDE AIR BAG $431.46 To Order
...and 1 more part variants. See table on right for more details.
View All

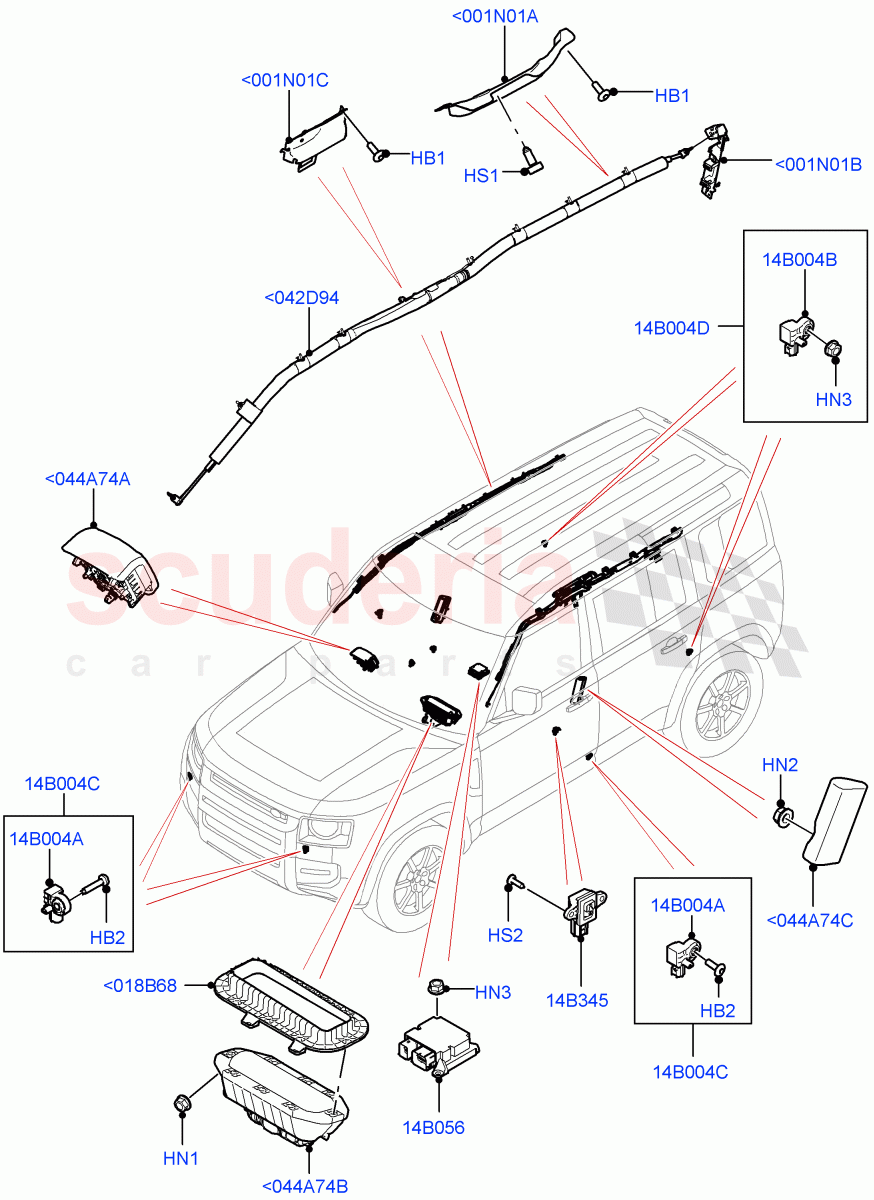

Airbag System of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<001N01A LR131096
BRACKET - AIR BAG
Less 3rd Row Rear Seat, Sensor - Occupant Classification, Standard Wheelbase / RH / To: L2008078 		$112.60 1
<001N01A LR131106
BRACKET - AIR BAG
Less 3rd Row Rear Seat, Sensor - Occupant Classification, Standard Wheelbase / LH / To: L2008078 		$367.70 1
<001N01A LR143228
BRACKET - AIR BAG
Standard Wheelbase, With 3rd Row Double Seat / RH / From: L2008079 		$112.60 1
<001N01A LR143229
BRACKET - AIR BAG
Standard Wheelbase, With 3rd Row Double Seat / LH / From: L2008079 		$115.44 1
<001N01B LR133001
BRACKET - AIR BAG
Less 3rd Row Rear Seat, Sensor-Occ W/out Pass Airbag Cutoff, Standard Wheelbase / LH 		$314.01 1
<001N01B LR132998
BRACKET - AIR BAG
Less 3rd Row Rear Seat, Sensor-Occ W/out Pass Airbag Cutoff, Standard Wheelbase / RH 		$120.89 1
<001N01C LR131102
BRACKET - AIR BAG
Short Wheelbase / LH / To: L2000119 		$128.91 1
<001N01C LR131092
BRACKET - AIR BAG
Short Wheelbase / RH / To: L2000119 		$108.01 1
<001N01C LR146699
BRACKET - AIR BAG
Short Wheelbase / RH / From: L2000120 		$120.89 1
<001N01C LR146700
BRACKET - AIR BAG
Short Wheelbase / LH / From: L2000120 		$128.91 1
<018B68 LR174887
BRACKET - AIR BAG
LHD / Passenger 		$10.26 1
<018B68 LR174888
Bracket - Instrument Panel
RHD / Passenger 		$10.26 1
<042D94 LR133005
AIR BAG - CURTAIN
Less 3rd Row Rear Seat, Sensor-Occ W/out Pass Airbag Cutoff, Standard Wheelbase / RH / To: L2027270 		$500.29 1
<042D94 LR133012
AIR BAG - CURTAIN
Less 3rd Row Rear Seat, Sensor-Occ W/out Pass Airbag Cutoff, Standard Wheelbase / LH / To: L2027270 		$500.29 1
<042D94 LR133003
AIR BAG - CURTAIN
Less 3rd Row Rear Seat, Sensor - Occupant Classification, Standard Wheelbase / RH 		$500.29 1
<042D94 LR133006
AIR BAG - CURTAIN
Less 3rd Row Rear Seat, Sensor - Occupant Classification, Standard Wheelbase / LH 		$500.29 1
<042D94 LR133004
AIR BAG - CURTAIN
Short Wheelbase / RH 		$500.29 1
<042D94 LR133008
AIR BAG - CURTAIN
Short Wheelbase / LH 		$500.29 1
<042D94 LR147121
AIR BAG - CURTAIN
Less 3rd Row Rear Seat, Sensor-Occ W/out Pass Airbag Cutoff, Standard Wheelbase / RH / From: L2027271 		$500.29 1
<042D94 LR147118
AIR BAG - CURTAIN
Less 3rd Row Rear Seat, Standard Wheelbase, With Occupant Sensor / LH / From: L2027271 		$500.29 1
<044A74A LR133043
AIR BAG
2.0L I4 DSL HIGH DOHC AJ200, LTH WRAPPED WITH PU DAB / Steering Wheel / To: L2008011 		$934.16 1
<044A74A LR133047
AIR BAG
3.0L AJ20P6 Petrol High, Basic Type Steering Wheel / Steering Wheel / To: L2008011 		$934.16 1
<044A74A LR133054
AIR BAG
2.0L I4 High DOHC AJ200 Petrol, Leather Steering Wheel / Steering Wheel / To: L2008011 		$1,112.50 1
<044A74A LR133061
AIR BAG
3.0L AJ20P6 Petrol High, Leather Steering Wheel / Steering Wheel / To: L2008011 		$961.92 1
<044A74A LR143391
AIR BAG
2.0L I4 DSL HIGH DOHC AJ200, LTH WRAPPED WITH PU DAB / Steering Wheel / From: L2008012 / To: L2999999 		$813.85 1
<044A74A LR143392
AIRBAG
3.0L AJ20P6 Petrol High, LTH WRAPPED WITH PU DAB / Steering Wheel / From: L2008012 / To: L2999999 		$934.16 1
<044A74A LR143393
AIR BAG
2.0L I4 DSL HIGH DOHC AJ200, Leather Steering Wheel / Steering Wheel / From: L2008012 / To: L2999999 		$1,112.50 1
<044A74A LR143394
AIR BAG
3.0L AJ20P6 Petrol High, Leather Steering Wheel / Steering Wheel / From: L2008012 / To: L2999999 		$1,076.96 1
<044A74A LR153688
AIR BAG
2.0L I4 DSL HIGH DOHC AJ200, LTH WRAPPED WITH PU DAB / Steering Wheel / From: M2000001 		$927.70 1
<044A74A LR153690
AIR BAG
3.0L AJ20P6 Petrol High, LTH WRAPPED WITH PU DAB / Steering Wheel / From: M2000001 		$927.70 1
<044A74A LR153691
AIR BAG
2.0L I4 DSL HIGH DOHC AJ200, Leather Steering Wheel / Steering Wheel / From: M2000001 		$1,104.78 1
<044A74A LR153693
AIR BAG
3.0L AJ20D6 Diesel High, Leather Steering Wheel / Steering Wheel / From: M2000001 		$1,039.32 1
<044A74A LR153693
AIR BAG
5.0 Petrol AJ133 DOHC CDA, Stng Whl-Monotone Alctra w/Lthr DAB / Steering Wheel / From: M2065457 		$1,039.32 1
<044A74B LR133026
AIR BAG - PASSENGER
Sensor-Occ W/out Pass Airbag Cutoff / Passenger 		$850.04 1
<044A74B LR133025
AIR BAG - PASSENGER
Sensor - Occupant Classification / Passenger 		$850.04 1
<044A74C LR132506
SIDE AIR BAG
Version - First Edition / RH 		$396.56 1
<044A74C LR132515
SIDE AIR BAG
Version - First Edition / LH 		$431.46 1
<044A74C LR142566
SIDE AIR BAG
Version - Commercial / RH / From: M2000001 		$431.46 1
<044A74C LR142567
SIDE AIR BAG
Version - Commercial / LH / From: M2000001 		$431.46 1
HB1 LR033002
BOLT AND WASHER - TORX HEAD
M6 X 20.5, Torx 		$1.51 8
HB2 LR042803
BOLT
M6 x 28MM, Torx
IN STOCK 		$1.24 4
HN1 RYH500420
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer
IN STOCK 		$0.44 8
HN2 FX106046
NUT - FLANGED
Hexagonal Head, M6
IN STOCK 		$0.60 4
HN3 LR031341
NUT - HEX.
Hexagonal Head, M6 		$1.03 2
HS1 VYP500060
SCREW
4.8 X 16MM, Torx
IN STOCK 		$0.47 1
HS2 LR081401
SCREW
4.8 X 19MM 		$1.51 4
14B004A LR101226
SENSOR - AIR BAG
"B" Pillar, Crash Sensor, Front Bumper, RH/LH 		$143.09 4
14B004B LR129171
SENSOR - AIR BAG
Standard Wheelbase / "C" Pillar, Crash Sensor, RH/LH 		$132.25 2

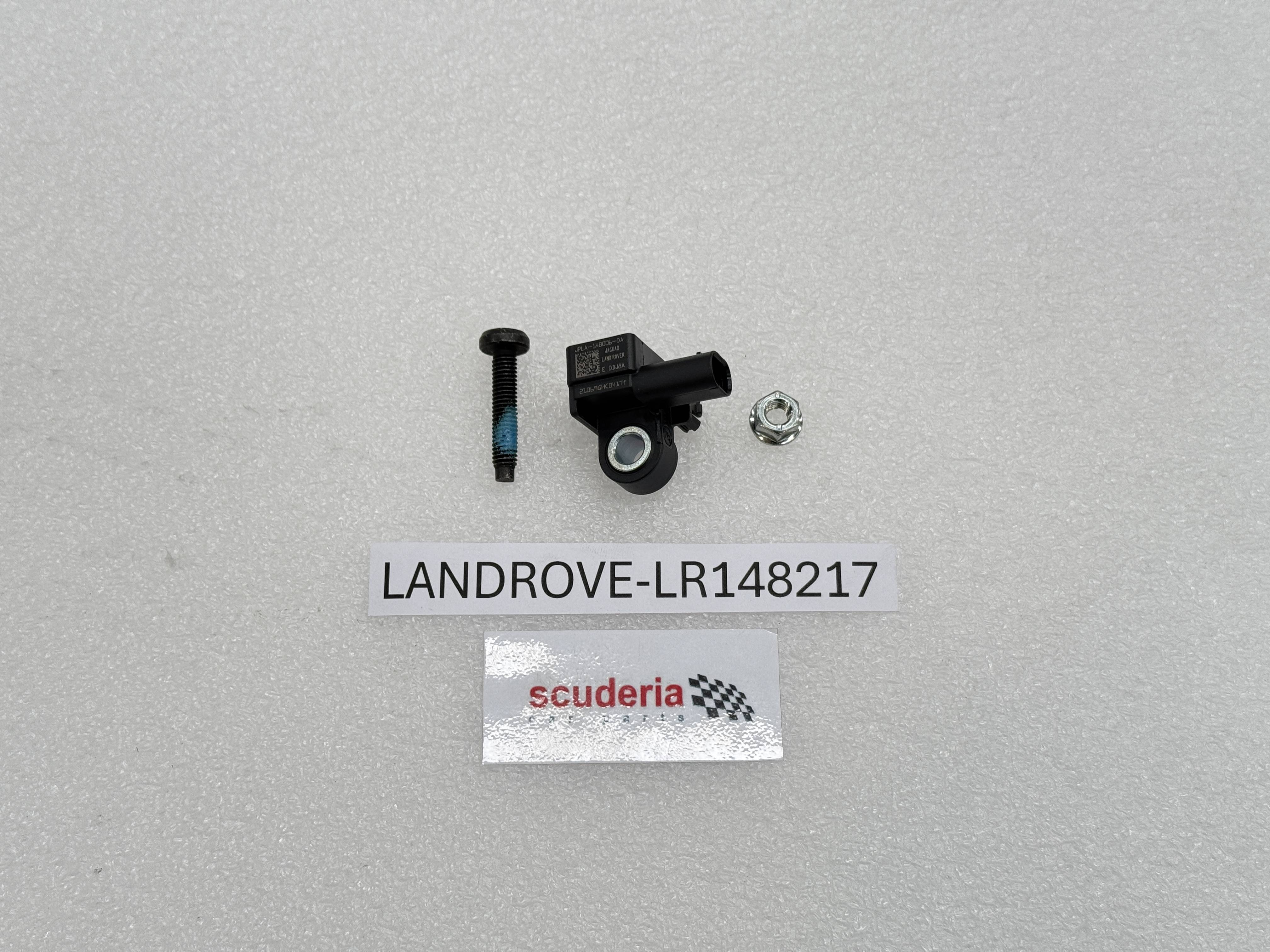

14B004C LR148217
SENSOR - AIR BAG
"B" Pillar, Crash Sensor, Front Bumper, RH/LH, Service Kit
IN STOCK 		$607.55 4
14B004D LR148218
SENSOR - AIR BAG
Standard Wheelbase / "C" Pillar, Crash Sensor, RH/LH, Service Kit 		$251.05 2
14B056 LR129167
MONITOR - AIRBAG DIAGNOSTIC MODULE
To: L2999999
IN STOCK 		$551.27 1
14B056 LR139831
MODULE - AIR BAG
From: M2000001 / To: N2999999
IN STOCK 		$553.10 1
14B056 LR154987
MONITOR - AIRBAG DIAGNOSTIC MODULE
From: P2000001 		$813.89 1
14B345 LR043878
SENSOR - SIDE AIR BAG
Front Door, Pressure Sensor, RH/LH 		$130.28 2
