Air Conditioning System (2.0L Aj200P Hi Phev, Rhd)

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Air Conditioning System (2.0L AJ200P Hi PHEV, RHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500800 BOLT $0.52 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR044465 O-RING $2.93 To Order
Photo Part No Description Price (each) Stock
LR044466 O-RING $4.34 To Order
Photo Part No Description Price (each) Stock
FS108306 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
LR038548 BRACKET - A/C PIPE $21.22 To Order
Photo Part No Description Price (each) Stock
LR133558 VALVE - SHUT-OFF $223.95 To Order
Photo Part No Description Price (each) Stock
LR036404 SEAL - RUBBER $22.43 To Order
Photo Part No Description Price (each) Stock
LR101280 SENSOR - REFRIGERANT PRESSURE $121.23 To Order
Photo Part No Description Price (each) Stock
LR131132 TUBE - AUXILIARY HEATER SUPPLY $202.47 To Order
Photo Part No Description Price (each) Stock
LR131159 TUBE- A/C EVAPORATOR INLET & OUTLET $416.59 To Order
Photo Part No Description Price (each) Stock
LR131170 TUBE- A/C EVAPORATOR INLET & OUTLET $452.01 To Order
LR131171 TUBE- A/C EVAPORATOR INLET & OUTLET $452.01 To Order
LR159464 TUBE- A/C EVAPORATOR INLET & OUTLET $452.01 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR131164 VALVE - AIR CONDITIONING $51.36 To Order
LR131165 VALVE - AIR CONDITIONING $53.54 To Order
JUS500030 VALVE $15.46 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR133088 CAP - VALVE $23.92 To Order
LR133087 CAP - VALVE $27.26 To Order
LR133089 CAP - VALVE $25.21 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR122305 WASHER - SEALING $14.57 To Order
Photo Part No Description Price (each) Stock
LR124621 WASHER - SEALING $15.73 To Order
View All

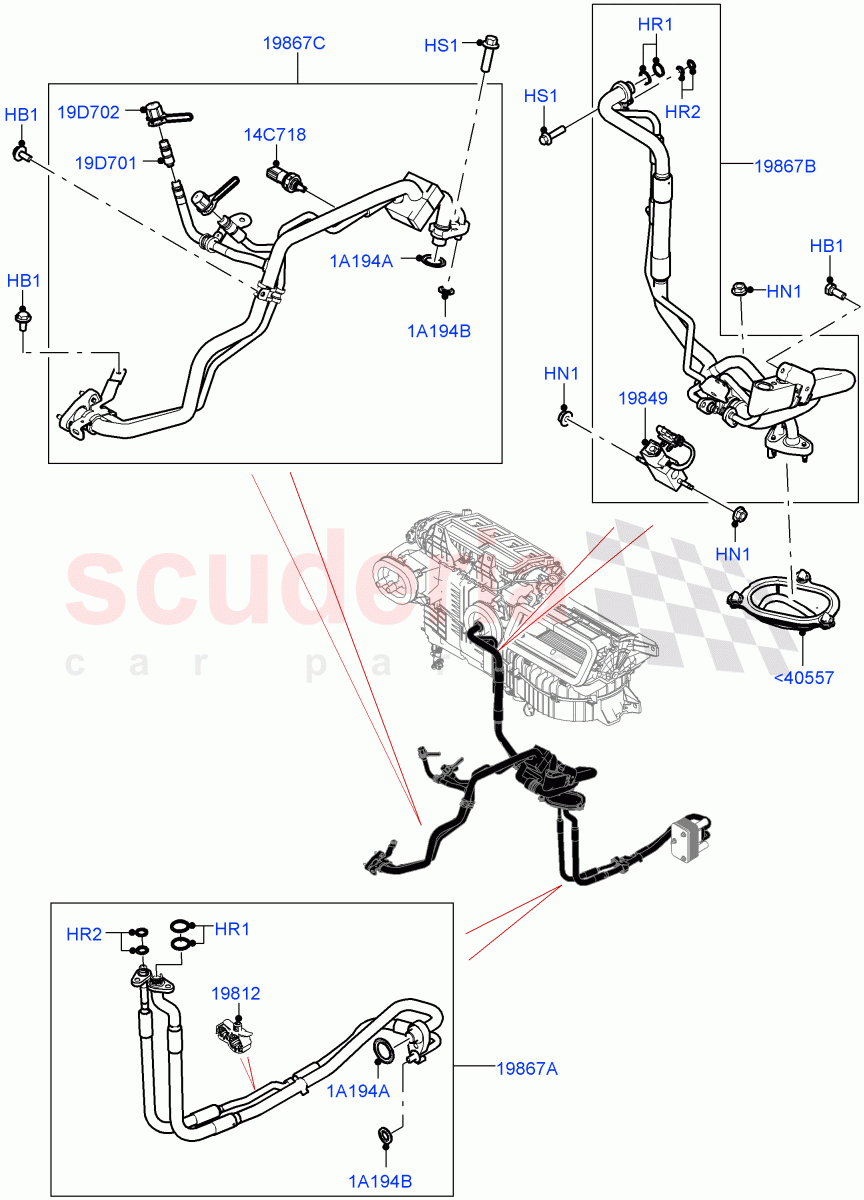

Air Conditioning System (2.0L AJ200P Hi PHEV, RHD) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<40557 LR036404
SEAL - RUBBER 		$22.43 1
HB1 RYG500800
BOLT
Hexagonal Head, M6 X 16MM 		$0.52 3
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.47 3
HR1 LR044465
O-RING
14 X 1.78 		$2.93 4
HR2 LR044466
O-RING
7.65 X 1.78 		$4.34 4
HS1 FS108306
SCREW
M8 x 30MM 		$0.47 1
1A194A LR122305
WASHER - SEALING
19.05 MM 		$14.57 2
1A194B LR124621
WASHER - SEALING
3/8" 		$15.73 2
14C718 LR101280
SENSOR - REFRIGERANT PRESSURE 		$121.23 1
19D701 LR131164
VALVE - AIR CONDITIONING
Air Conditioning Refrigerant-R134A / High Pressure Charge Port 		$51.36 1
19D701 LR131165
VALVE - AIR CONDITIONING
Air Conditioning Refrigerant-R134A / Low Pressure Port 		$53.54 1
19D701 JUS500030
VALVE
Air Con Refrigerant-HF01234YF / High Pressure Charge Port, Low Pressure Port / To: N2999999 		$15.46 2
19D701 JUS500030
VALVE
A/C HF01234YF w/Intrnl Heat Exchng / High Pressure Charge Port, Low Pressure Port / From: P2000001 		$15.46 2
19D702 LR133088
CAP - VALVE
Air Conditioning Refrigerant-R134A / High Pressure Charge Port 		$23.92 1
19D702 LR133087
CAP - VALVE
Air Con Refrigerant-HF01234YF / High Pressure Charge Port, Low Pressure Port / To: N2999999 		$27.26 2
19D702 LR133089
CAP - VALVE
Air Conditioning Refrigerant-R134A / Low Pressure Port 		$25.21 1
19D702 LR133087
CAP - VALVE
A/C HF01234YF w/o Intrnl HT Exchng / High Pressure Charge Port, Low Pressure Port / From: P2000001 		$27.26 2
19812 LR038548
BRACKET - A/C PIPE 		$21.22 1
19849 LR133558
VALVE - SHUT-OFF 		$223.95 1
19867A LR131132
TUBE - AUXILIARY HEATER SUPPLY 		$202.47 1
19867B LR131159
TUBE- A/C EVAPORATOR INLET & OUTLET
To HVAC Unit 		$416.59 1
19867C LR131170
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / To Compressor, To Condenser / To: M2058997 		$452.01 1
19867C LR131171
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Con Refrigerant-HF01234YF / To Compressor, To Condenser / To: M2058997 		$452.01 1
19867C LR159464
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / To Compressor, To Condenser / From: M2058998 		$452.01 1
19867C LR159463
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Con Refrigerant-HF01234YF / To Compressor, To Condenser / From: M2058998 / To: N2999999 		$418.54 1
19867C LR159463
TUBE- A/C EVAPORATOR INLET & OUTLET
A/C HF01234YF w/Intrnl Heat Exchng / To Compressor, To Condenser / From: P2000001 		$418.54 1
