Front Brake Pipes (Rhd)

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Front Brake Pipes (RHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.67 IN STOCK
Photo Part No Description Price (each) Stock
LR033441 CLIP - SPECIAL $4.46 To Order
Photo Part No Description Price (each) Stock
LR033442 CLIP - SPECIAL $5.66 To Order
Photo Part No Description Price (each) Stock
LR133556 BRACKET - SENSOR MOUNTING $23.10 To Order
Photo Part No Description Price (each) Stock
LR113969 HOSE - BRAKE $97.42 To Order
Photo Part No Description Price (each) Stock
LR113970 HOSE - BRAKE $136.99 To Order
Photo Part No Description Price (each) Stock
LR130668 TUBE - BRAKE $49.05 To Order
Photo Part No Description Price (each) Stock
LR131252 TUBE - BRAKE $38.81 To Order
Photo Part No Description Price (each) Stock
LR131258 TUBE - BRAKE $39.93 To Order
Photo Part No Description Price (each) Stock
LR033452 NUT - CONNECTING $10.77 To Order
Photo Part No Description Price (each) Stock
LR033453 NUT - CONNECTING $9.66 To Order
Photo Part No Description Price (each) Stock
EJP7813 CLIP - HOSE $2.46 IN STOCK
Photo Part No Description Price (each) Stock
LR129154 PIPE - BRAKE $78.80 To Order
LR158087 PIPE - BRAKE $82.74 To Order
Photo Part No Description Price (each) Stock
LR131255 TUBE - BRAKE $38.89 To Order
View All

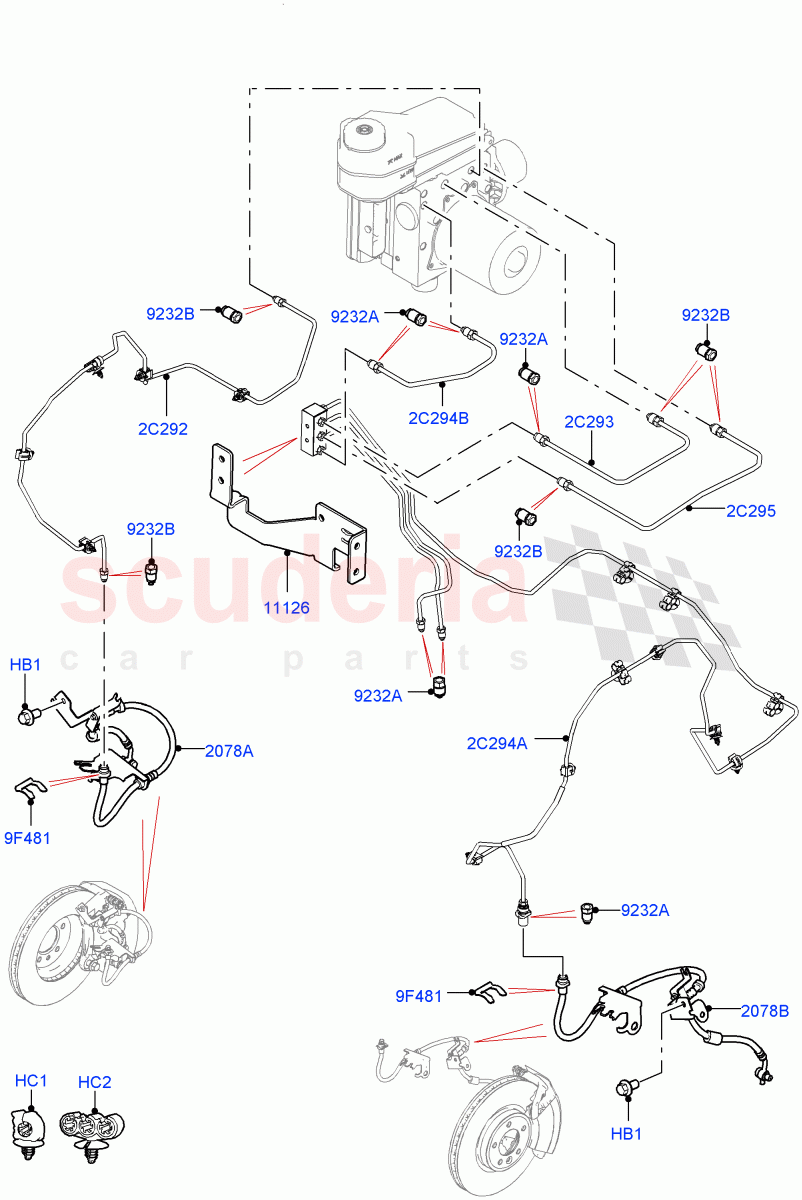

Front Brake Pipes (RHD) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM
IN STOCK 		$0.67 4
HC1 LR033441
CLIP - SPECIAL
5MM, Single 		$4.46 -
HC2 LR033442
CLIP - SPECIAL
5MM, Triple 		$5.66 -
2C292 LR130668
TUBE - BRAKE
Modulator To RH Front 		$49.05 1
2C293 LR131252
TUBE - BRAKE
Connector, Inlet, Upper 		$38.81 1
2C294A LR129154
PIPE - BRAKE
Modulator To LH Front Wheel, Modulator To Rear Brake Pipe / To: N2072657 		$78.80 1
2C294A LR158087
PIPE - BRAKE
Modulator To LH Front Wheel, Modulator To Rear Brake Pipe / From: N2072658 		$82.74 1
2C294B LR131255
TUBE - BRAKE
Connector, Inlet, Lower 		$38.89 1
2C295 LR131258
TUBE - BRAKE
Connector, Inlet, Middle 		$39.93 1
9F481 EJP7813
CLIP - HOSE
Brake Hose
IN STOCK 		$2.46 2
2078A LR113969
HOSE - BRAKE
RH, Includes Bracket, To Caliper 		$97.42 1
2078B LR113970
HOSE - BRAKE
LH, Includes Bracket, To Caliper 		$136.99 1
9232A LR033452
NUT - CONNECTING
M10 		$10.77 -
9232B LR033453
NUT - CONNECTING
M12 		$9.66 -
11126 LR133556
BRACKET - SENSOR MOUNTING 		$23.10 1
