| Photo | Part No | Description | Price (each) | Stock |
 |
LR034354 | BOLT - PAN - TORX | $1.07 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR148191 | CLIP - HOSE | $3.69 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
 |
FS106206 | SCREW | $0.96 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
|
LR128402 | MANIFOLD - FUEL SUPPLY | $114.71 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR149361 | RETAINER - TUBE | $3.76 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR132670 | PIPE - FUEL | $160.63 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR132672 | TUBE - FUEL SUPPLY | $273.36 | To Order |
|
LR144566 | TUBE - FUEL SUPPLY | $273.36 | To Order |
|
LR149359 | TUBE - FUEL SUPPLY | $273.36 | To Order |
| # | Part Details | Price (each) |
Qty on Diagram |
Add to Cart |
|---|---|---|---|---|
| HB1 |
LR034354 BOLT - PAN - TORX M6 x 19MM, Torx |
$1.07 | 1 | |
| HC1 |
LR148191 CLIP - HOSE Double |
$3.69 | 2 | |
| HS1 |
FS106206 SCREW Hexagonal Head, M6 X 20MM IN STOCK |
$0.96 | 2 | |
| 9D280 |
LR128402 MANIFOLD - FUEL SUPPLY |
$114.71 | 1 | |
| 9J278 |
LR149361 RETAINER - TUBE Rear |
$3.76 | 1 | |
| 9J280 |
LR132670 PIPE - FUEL Front |
$160.63 | 1 | |
| 9S284 |
LR132672 TUBE - FUEL SUPPLY To: M2023822 |
$273.36 | 1 | |
| 9S284 |
LR144566 TUBE - FUEL SUPPLY From: M2023823 / To: M2028919 |
$273.36 | 1 | |
| 9S284 |
LR149359 TUBE - FUEL SUPPLY From: M2028920 |
$273.36 | 1 |
Haven't found what you're looking for?

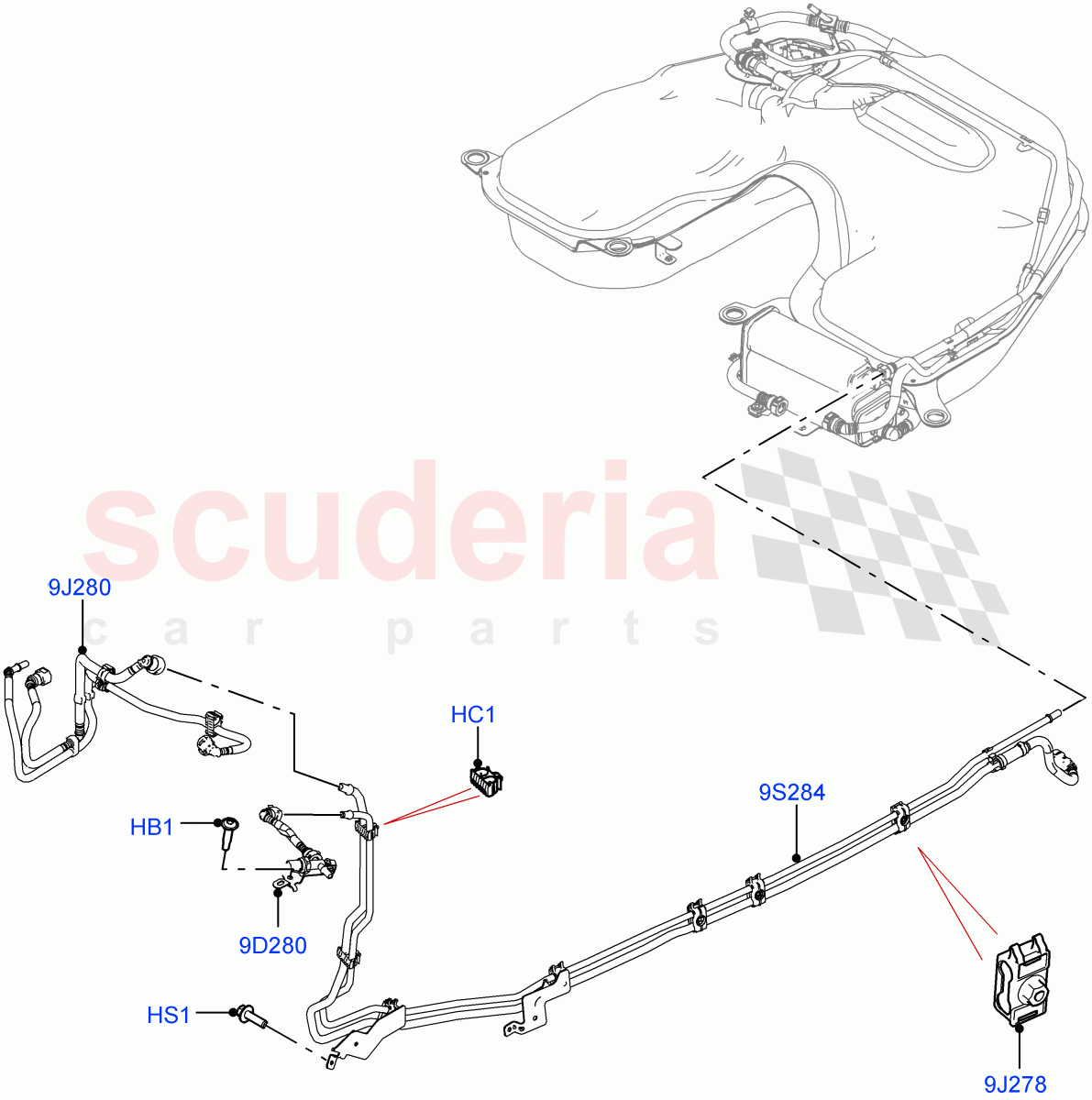

![Fuel Lines (Nitra Plant Build) (2.0L AJ200P Hi PHEV) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]](/images/diagrams/landrover/8JHTTZB3ATDPNQNMRJ6D.gif)
