Name: Cooling System Pipes And Hoses (Electric Motor Cooling Systems) (2.0L AJ200P Hi PHEV) ((V) FROMM2000001)
Rating: 5.0 (1 reviews)

View All

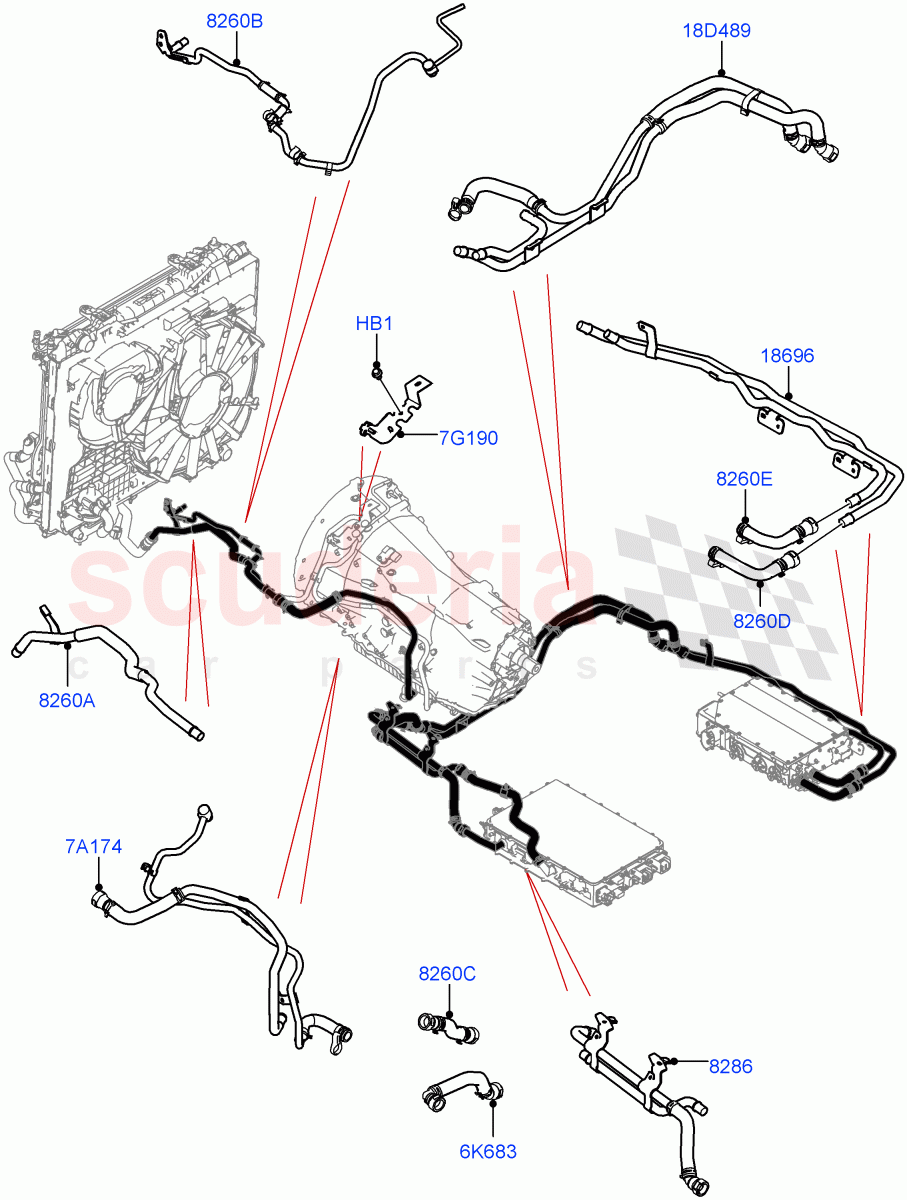

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR129411	HOSE - WATER	$209.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131274	TUBE - INVERTER COOLING	$115.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132592	HOSE - WATER	$71.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118347	PIPE - MOTOR/GENERATOR COOLING	$136.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132417	PLATE - MOUNTING	$59.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129413	TUBE - INVERTER COOLING	$97.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129405	PIPE - MOTOR/GENERATOR COOLING	$209.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132401	HOSE - WATER INLET	$73.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131407	TUBE - INVERTER COOLING	$61.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131405	TUBE - INVERTER COOLING	$61.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132631	HOSE - WATER	$209.71	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS106126	BOLT IN STOCK	FS106126 BOLT Hexagonal Head, M6 x 12MM / From: M2000001 IN STOCK	$0.52	1
6K683	LR132592	HOSE - WATER	LR132592 HOSE - WATER Battery Charger to Crankshaft Integrated Motor Generator / From: M2000001	$71.01	1
7A174	LR118347	PIPE - MOTOR/GENERATOR COOLING	LR118347 PIPE - MOTOR/GENERATOR COOLING Feed / From: M2000001	$136.27	1
7G190	LR132417	PLATE - MOUNTING	LR132417 PLATE - MOUNTING From: M2000001	$59.36	1
18D489	LR132631	HOSE - WATER	LR132631 HOSE - WATER From: M2000001	$209.71	1
8260A	LR129413	TUBE - INVERTER COOLING	LR129413 TUBE - INVERTER COOLING Auxiliary Radiator To Inverter / From: M2000001	$97.12	1
8260B	LR129405	PIPE - MOTOR/GENERATOR COOLING	LR129405 PIPE - MOTOR/GENERATOR COOLING Crank Integrated Motor Generator, Return / From: M2000001	$209.15	1
8260C	LR132401	HOSE - WATER INLET	LR132401 HOSE - WATER INLET Inlet - Battery Charger / From: M2000001	$73.17	1
8260D	LR131407	TUBE - INVERTER COOLING	LR131407 TUBE - INVERTER COOLING Outlet / From: M2000001	$61.46	1
8260E	LR131405	TUBE - INVERTER COOLING	LR131405 TUBE - INVERTER COOLING Inlet / From: M2000001	$61.46	1
8286	LR129411	HOSE - WATER	LR129411 HOSE - WATER Inverter To Battery Charger / From: M2000001	$209.71	1
18696	LR131274	TUBE - INVERTER COOLING	LR131274 TUBE - INVERTER COOLING From: M2000001	$115.02	1
