Rear Seat Base (With 40/20/40 Split Fold Rear Seat)

Land Rover Defender (2020+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Diesel] - Rear Seat Base (With 40/20/40 Split Fold Rear Seat)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038571 BOLT $3.68 To Order
Photo Part No Description Price (each) Stock
RYG500710 BOLT AND WASHER - TORX HEAD $1.95 IN STOCK
Photo Part No Description Price (each) Stock
LR067429 BOLT $1.65 To Order
Photo Part No Description Price (each) Stock
LR132828 MOUNTING - SEAT BACK $583.34 To Order
LR143386 MOUNTING - SEAT BACK $388.03 IN STOCK
Photo Part No Description Price (each) Stock
LR161082 SUPPORT - REAR SEAT CUSHION $494.06 To Order
LR161082 SUPPORT - REAR SEAT CUSHION $494.06 To Order
Photo Part No Description Price (each) Stock
LR137571 PIVOT PIN $51.82 To Order
Photo Part No Description Price (each) Stock
LR133100 RETAINER - SEAT $12.06 IN STOCK
Photo Part No Description Price (each) Stock
LR132225 FRAME - SEAT $603.55 IN STOCK
LR159968 Frame $932.58 To Order
Photo Part No Description Price (each) Stock
LR132718 FRAME AND SPRING - RR SEAT CUSHION $194.41 IN STOCK
Photo Part No Description Price (each) Stock
LR132721 FRAME AND SPRING - RR SEAT CUSHION $178.67 IN STOCK
Photo Part No Description Price (each) Stock
LR132204 COVER - CONSOLE HINGE $81.41 To Order
LR132205 COVER - CONSOLE HINGE $74.64 To Order
LR133034 COVER - CONSOLE HINGE $81.41 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR132214 COVER - CONSOLE HINGE $81.41 To Order
LR132213 COVER - CONSOLE HINGE $81.41 IN STOCK
View All

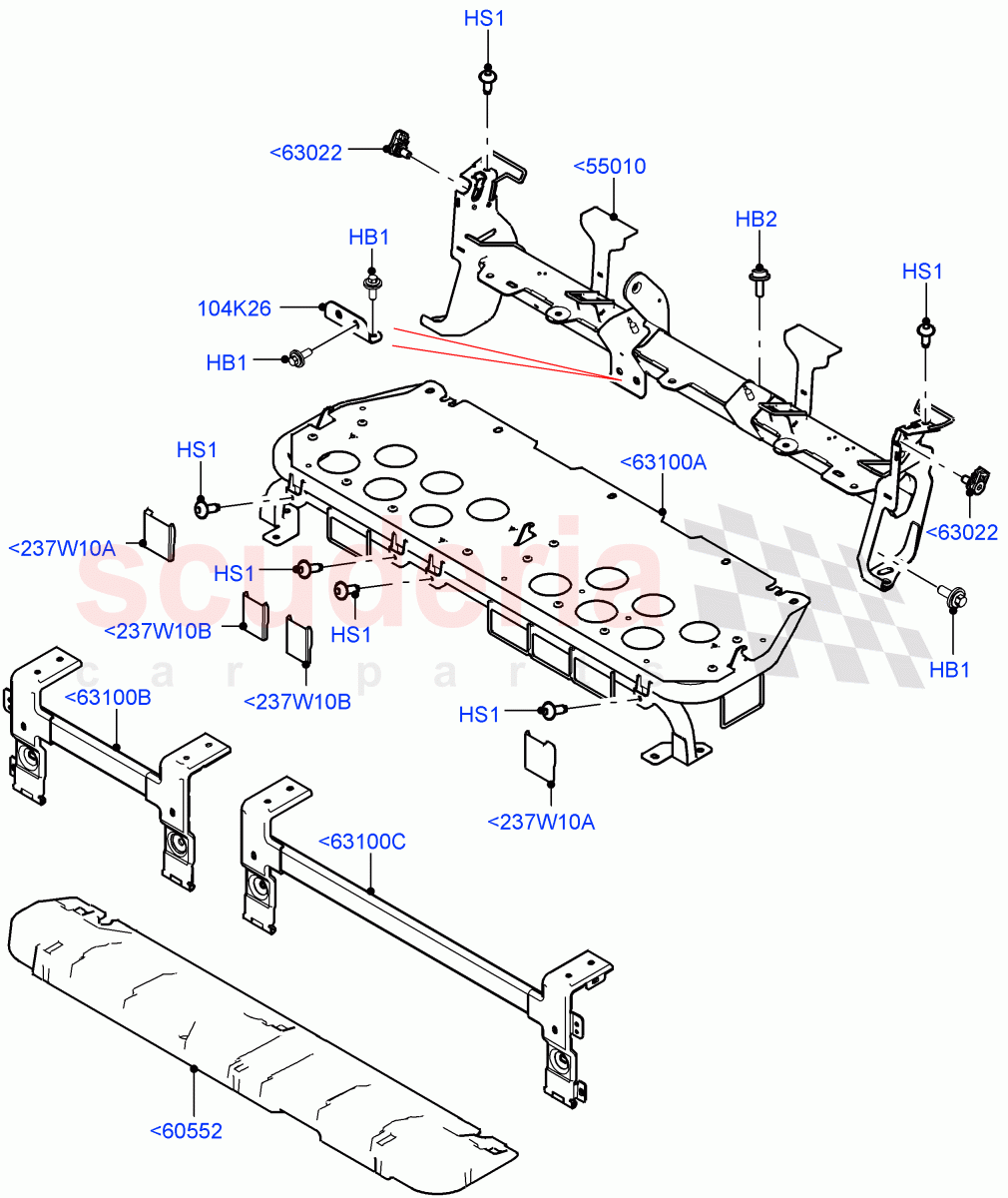

Rear Seat Base (With 40/20/40 Split Fold Rear Seat) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<237W10A LR132204
COVER - CONSOLE HINGE
Acorn / Outer, RH Seat 		$81.41 1
<237W10A LR132205
COVER - CONSOLE HINGE
Khaki/Ebony / Outer, RH Seat 		$74.64 1
<237W10A LR133034
COVER - CONSOLE HINGE
Acorn / LH Seat, Outer 		$81.41 1
<237W10A LR133035
COVER - CONSOLE HINGE
Ebony Black/Ebony Black Interior / LH Seat, Outer
IN STOCK 		$81.41 1
<237W10B LR132214
COVER - CONSOLE HINGE
Acorn / Inner 		$81.41 2
<237W10B LR132213
COVER - CONSOLE HINGE
Khaki/Ebony / Inner
IN STOCK 		$81.41 2
<55010 LR132828
MOUNTING - SEAT BACK
To: L2029547 		$583.34 1
<55010 LR143386
MOUNTING - SEAT BACK
From: L2029548
IN STOCK 		$388.03 1
<60552 LR161082
SUPPORT - REAR SEAT CUSHION
To: N2072434 		$494.06 1
<60552 LR161082
SUPPORT - REAR SEAT CUSHION
From: N2072435 		$494.06 1
<63022 LR137571
PIVOT PIN
RH/LH 		$51.82 2
<63100A LR132225
FRAME - SEAT
Main / To: N2072434
IN STOCK 		$603.55 1
<63100A LR159968
Frame
Main / From: N2072435 		$932.58 1
<63100B LR132718
FRAME AND SPRING - RR SEAT CUSHION
Front, RH Seat
IN STOCK 		$194.41 1
<63100C LR132721
FRAME AND SPRING - RR SEAT CUSHION
Front, LH Seat
IN STOCK 		$178.67 1
HB1 LR038571
BOLT
Hexagonal Head, M12 X 35MM, Seat Frame To Floor 		$3.68 2
HB2 RYG500710
BOLT AND WASHER - TORX HEAD
M10 X 30MM
IN STOCK 		$1.95 -
HS1 LR067429
BOLT
M8 X 16MM 		$1.65 6
104K26 LR133100
RETAINER - SEAT
IN STOCK 		$12.06 1
