Name: Exhaust Fluid Injection System (Tank And Filler) (2.0L I4 DSL HIGH DOHC AJ200, With Diesel Exh Fluid Emission Tank) ((V) FROML2000001)
Rating: 5.0 (1 reviews)

Exhaust Fluid Injection System (Tank And Filler) (2.0L I4 DSL HIGH DOHC AJ200, With Diesel Exh Fluid Emission Tank) ((V) FROML2000001) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel]

View All

Land Rover Defender (2020+) [2.0 Turbo Diesel] - Exhaust Fluid Injection System (Tank And Filler) (2.0L I4 DSL HIGH DOHC AJ200, With Diesel Exh...

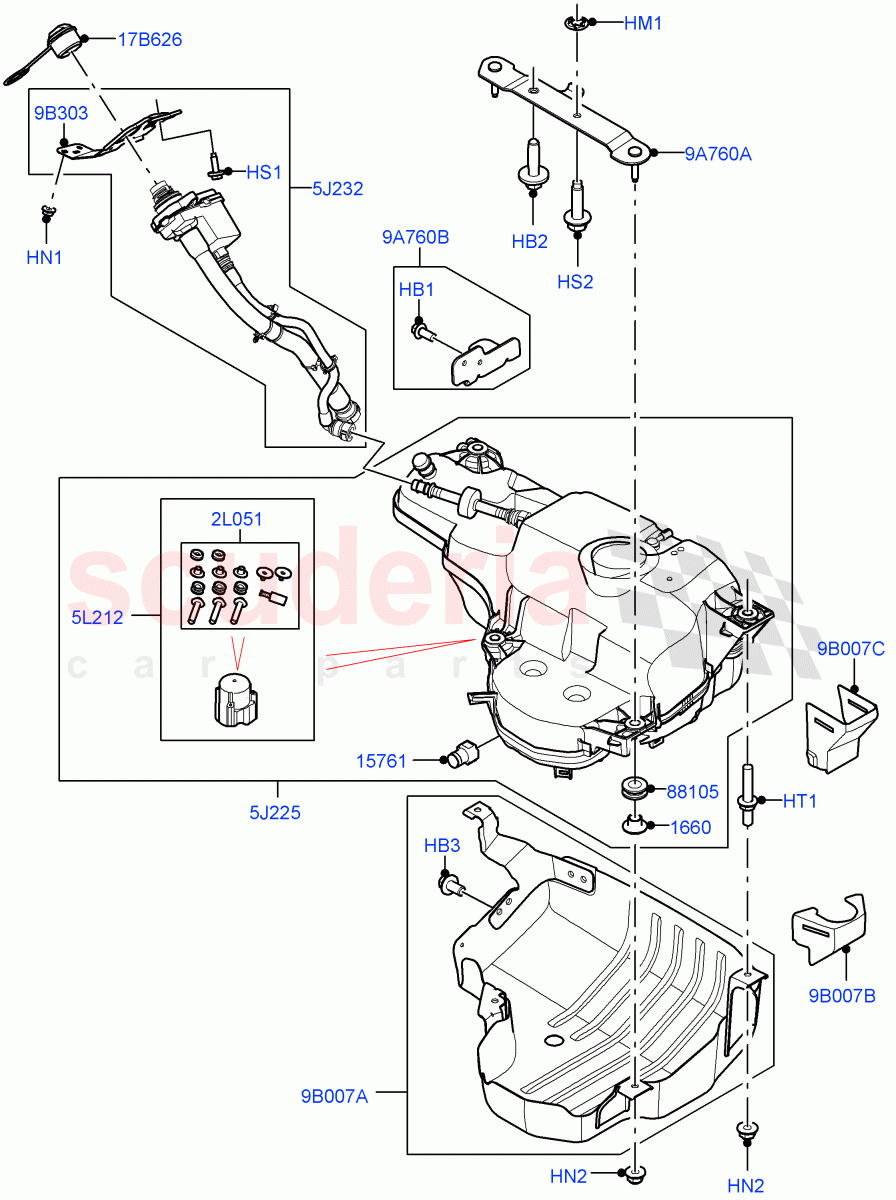

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033245	BOLT	$3.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093055	BOLT	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133555	NUT	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	$1.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR131972	NUT - HEX.	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	$1.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR072612	SCREW	$2.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132683	STUD	$5.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115628	SPACER - STRIKER	$7.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115627	PLUG - BLANKING	$6.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085287	KIT - FIXING PARTS	$47.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132645	SHIELD - TANK	$853.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131419	HOSE - TANK	$152.74	To Order
	LR155915	HOSE - TANK	$147.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084743	PUMP - DIESEL EXHAUST FLUID	$557.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125664	BUSH - INSULATING	$3.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132682	BRACKET - FILLER PIPE	$32.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115637	CAP - FILLER	$14.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129419	BRACKET - FUEL TANK	$49.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131414	BRACKET - FUEL TANK	$65.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132637	SHIELD - TANK	$317.65	To Order
	LR173831	SHIELD - TANK	$312.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132653	SHIELD - TANK	$146.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132655	SHIELD - TANK	$146.27	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM IN STOCK	$2.29	2
HB2	LR033245	BOLT	LR033245 BOLT M12 x 40MM	$3.61	1
HB3	LR093055	BOLT	LR093055 BOLT M8 X 16, Shield	$1.16	4
HM1	LR133555	NUT	LR133555 NUT M12, Starlock	$1.11	1
HN1	FN106042	NUT IN STOCK	FN106042 NUT Standard Wheelbase / Hexagonal Head, M6 IN STOCK	$1.03	2
HN2	LR131972	NUT - HEX.	LR131972 NUT - HEX. M10	$1.23	6
HS1	RYG501590	SCREW IN STOCK	RYG501590 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$1.00	1
HS2	LR072612	SCREW	LR072612 SCREW Hexagonal Head, M12 X 45MM	$2.76	1
HT1	LR132683	STUD	LR132683 STUD M10 X 45MM + M10 X 22MM	$5.38	2
2L051	LR085287	KIT - FIXING PARTS	LR085287 KIT - FIXING PARTS	$47.21	1
5J225	LR132645	SHIELD - TANK	LR132645 SHIELD - TANK Complete Assembly	$853.43	1
5J232	LR131419	HOSE - TANK	LR131419 HOSE - TANK Assembly / To: N2077719	$152.74	1
5J232	LR155915	HOSE - TANK	LR155915 HOSE - TANK Assembly / From: N2077720	$147.82	1
5L212	LR084743	PUMP - DIESEL EXHAUST FLUID	LR084743 PUMP - DIESEL EXHAUST FLUID Kit Includes Fitting Parts, Service Kit	$557.59	1
9A760A	LR129419	BRACKET - FUEL TANK	LR129419 BRACKET - FUEL TANK Front	$49.49	1
9A760B	LR131414	BRACKET - FUEL TANK	LR131414 BRACKET - FUEL TANK Rear	$65.99	1
9B007A	LR132637	SHIELD - TANK	LR132637 SHIELD - TANK To: N2103303	$317.65	1
9B007A	LR173831	SHIELD - TANK	LR173831 SHIELD - TANK From: N2103304	$312.24	1
9B007B	LR132653	SHIELD - TANK	LR132653 SHIELD - TANK Front, Thermal	$146.27	1
9B007C	LR132655	SHIELD - TANK	LR132655 SHIELD - TANK Rear, Thermal	$146.27	1
9B303	LR132682	BRACKET - FILLER PIPE	LR132682 BRACKET - FILLER PIPE Filler Pipe	$32.32	1
17B626	LR115637	CAP - FILLER	LR115637 CAP - FILLER	$14.62	1
1660	LR115628	SPACER - STRIKER	LR115628 SPACER - STRIKER	$7.66	4
15761	LR115627	PLUG - BLANKING	LR115627 PLUG - BLANKING	$6.30	1
88105	LR125664	BUSH - INSULATING	LR125664 BUSH - INSULATING	$3.63	4
