Exhaust System (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Exhaust System (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011519 CLIP $2.07 IN STOCK
Photo Part No Description Price (each) Stock
LR025680 M10 FLANGED HEX NUT $8.01 IN STOCK
Photo Part No Description Price (each) Stock
WYH500060 NUT $3.89 To Order
Photo Part No Description Price (each) Stock
ESR2034 NUT - FLANGED $4.04 To Order
Photo Part No Description Price (each) Stock
WYR500040 STUD $4.53 To Order
Photo Part No Description Price (each) Stock
LR020940 EXTENSION - EXHAUST PIPE $708.15 To Order
LR029118 EXTENSION - EXHAUST PIPE $1,137.80 To Order
LR059415 EXTENSION - EXHAUST PIPE $1,007.56 To Order
Photo Part No Description Price (each) Stock
LR011070 MUFFLER - CENTER $1,139.63 To Order
LR039779 MUFFLER - CENTER $890.77 To Order
Photo Part No Description Price (each) Stock
WCL500030 CLAMP - EXHAUST $83.95 To Order
Photo Part No Description Price (each) Stock
WCM500110 GASKET $18.16 To Order
Photo Part No Description Price (each) Stock
LR010955 MUFFLER AND PIPE - REAR $1,190.48 To Order
Photo Part No Description Price (each) Stock
LR011092 PIPE - EXHAUST $1,084.31 To Order
Photo Part No Description Price (each) Stock
YQR000050 CLIP - WIRING $0.79 IN STOCK
Photo Part No Description Price (each) Stock
LR010932 CONVERTER $1,283.29 To Order
LR043262 CONVERTER $3,274.05 To Order
Photo Part No Description Price (each) Stock
LR010933 CONVERTER $1,304.84 To Order
LR043265 CATALYTIC CONVERTER $3,101.74 To Order
Photo Part No Description Price (each) Stock
LR025975 FINISHER $371.53 To Order
LR059417 FINISHER $656.86 To Order
Photo Part No Description Price (each) Stock
LR025974 FINISHER $440.62 To Order
LR059418 FINISHER $653.66 To Order
Photo Part No Description Price (each) Stock
LR025973 SHIELD - EXHAUST PIPE $151.49 To Order
Photo Part No Description Price (each) Stock
LR025972 SHIELD $151.49 To Order
Photo Part No Description Price (each) Stock
WCS000150 INSULATOR - RUBBER $24.01 To Order
Photo Part No Description Price (each) Stock
WCS500030 INSULATOR - RUBBER $27.91 To Order
Photo Part No Description Price (each) Stock
LR016836 BRACKET $14.92 To Order
Photo Part No Description Price (each) Stock
LR016835 BRACKET $12.97 To Order
Photo Part No Description Price (each) Stock
WCU500260 BRACKET - MUFFLER OUTLET PIPE $13.85 To Order
Photo Part No Description Price (each) Stock
WCU500270 BRACKET - MUFFLER OUTLET PIPE $13.85 To Order
Photo Part No Description Price (each) Stock
LR011710 SENSOR - HEGO $344.21 To Order
Photo Part No Description Price (each) Stock
LR011711 SENSOR - EXHAUST GAS - OXYGEN $367.12 To Order
View All

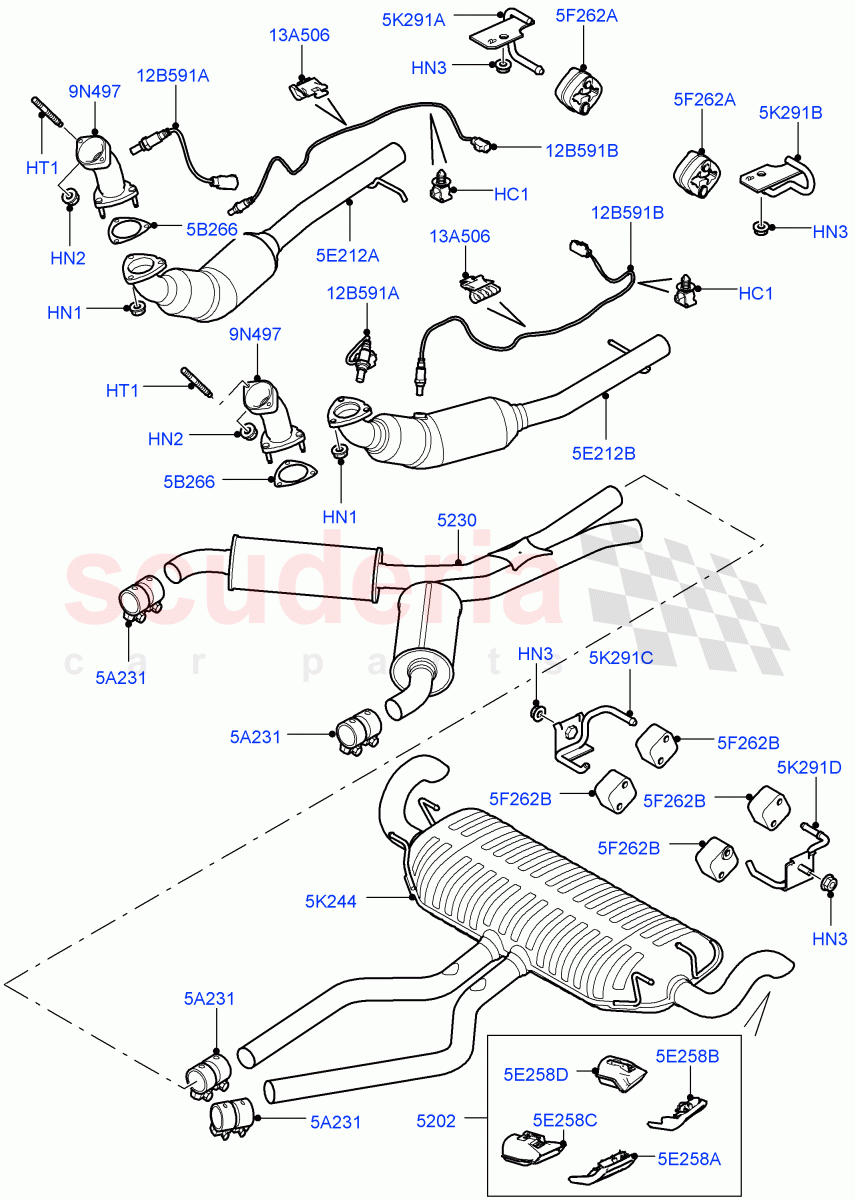

Exhaust System (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR011519
CLIP
9.5 X 6 X 2, Oxygen Sensor / From: AA000001
IN STOCK 		$2.07 4
HN1 LR025680
M10 FLANGED HEX NUT
M10 / From: AA000001
IN STOCK 		$8.01 6
HN2 WYH500060
NUT
M8 / From: AA000001 		$3.89 4
HN3 ESR2034
NUT - FLANGED
M10 X 1.5 / From: AA000001 		$4.04 4
HT1 WYR500040
STUD
M8 / From: AA000001 		$4.53 4
5A231 WCL500030
CLAMP - EXHAUST
55MM / From: AA000001 		$83.95 4
5B266 WCM500110
GASKET
Catalyst Assy / From: AA000001 		$18.16 2
5E212A LR010932
CONVERTER
RH / From: AA000001 / To: CA373660 		$1,283.29 1
5E212A LR043262
CONVERTER
RH / From: CA373661 		$3,274.05 1
5E212B LR010933
CONVERTER
LH / From: AA000001 / To: CA373660 		$1,304.84 1
5E212B LR043265
CATALYTIC CONVERTER
LH / From: CA373661 		$3,101.74 1
5E258A LR025975
FINISHER
5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / LH, Finisher / From: AA313069 / To: AA328616 		$371.53 1
5E258A LR059417
FINISHER
5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / LH, Finisher / From: AA328617 		$656.86 1
5E258B LR025974
FINISHER
5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / RH, Finisher / From: AA313069 / To: AA328616 		$440.62 1
5E258B LR059418
FINISHER
5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / RH, Finisher / From: AA328617 		$653.66 1
5E258C LR025973
SHIELD - EXHAUST PIPE
5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / LH / From: AA313069 		$151.49 1
5E258D LR025972
SHIELD
5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / RH / From: AA313069 		$151.49 1
5F262A WCS000150
INSULATOR - RUBBER
Centre / From: AA000001 		$24.01 2
5F262B WCS500030
INSULATOR - RUBBER
Rear / From: AA000001 		$27.91 4
5K244 LR010955
MUFFLER AND PIPE - REAR
Rear / From: AA000001 		$1,190.48 1
5K291A LR016836
BRACKET
RH / From: AA000001 		$14.92 1
5K291B LR016835
BRACKET
LH / From: AA000001 		$12.97 1
5K291C WCU500260
BRACKET - MUFFLER OUTLET PIPE
RH / From: AA000001 		$13.85 1
5K291D WCU500270
BRACKET - MUFFLER OUTLET PIPE
LH / From: AA000001 		$13.85 1
9N497 LR011092
PIPE - EXHAUST
From: AA000001 		$1,084.31 2
12B591A LR011710
SENSOR - HEGO
Exhaust Gas Oxygen / From: AA000001 		$344.21 2
12B591B LR011711
SENSOR - EXHAUST GAS - OXYGEN
Exhaust Gas Oxygen / From: AA000001 		$367.12 2
13A506 YQR000050
CLIP - WIRING
From: AA000001
IN STOCK 		$0.79 8
5202 LR020940
EXTENSION - EXHAUST PIPE
5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / Kit Includes Fitting Parts / From: AA313069 / To: BA337138 		$708.15 1
5202 LR029118
EXTENSION - EXHAUST PIPE
5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / Kit Includes Fitting Parts / From: BA337139 / To: BA338718 		$1,137.80 1
5202 LR059415
EXTENSION - EXHAUST PIPE
5.0L OHC SGDI SC V8 Petrol - AJ133, Rear Bumper - Body Kit / Kit Includes Fitting Parts / From: BA338719 		$1,007.56 1
5230 LR011070
MUFFLER - CENTER
From: AA000001 / To: CA380956 		$1,139.63 1
5230 LR039779
MUFFLER - CENTER
5.0L OHC SGDI SC V8 Petrol - AJ133 / From: CA380957 		$890.77 1
