Air Cleaner (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Air Cleaner (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 $1.47 IN STOCK
Photo Part No Description Price (each) Stock
PJQ500012 MOUNTING - RUBBER $5.32 IN STOCK
Photo Part No Description Price (each) Stock
LKD500030 PLUG - BLANKING $13.10 To Order
Photo Part No Description Price (each) Stock
LR161843 FILTER - AIR CLEANER $59.56 IN STOCK
Photo Part No Description Price (each) Stock
LR014311 BRACKET - AIR DUCT SUPPORT $22.28 IN STOCK
Photo Part No Description Price (each) Stock
LR011357 CLEANER - AIR $782.46 To Order
Photo Part No Description Price (each) Stock
LR011359 CLEANER - AIR $782.46 To Order
Photo Part No Description Price (each) Stock
LR012073 SENSOR - MASS AIR FLOW $397.08 To Order
Photo Part No Description Price (each) Stock
LR012667 DUCT - AIR $231.53 To Order
LR023450 DUCT - AIR $231.53 To Order
LR031462 DUCT - AIR $350.27 To Order
Photo Part No Description Price (each) Stock
LR011410 DUCT - AIR $101.27 To Order
LR023803 DUCT - AIR $96.43 To Order
Photo Part No Description Price (each) Stock
LR011409 DUCT - AIR $101.27 To Order
LR023800 DUCT - AIR $98.84 To Order
Photo Part No Description Price (each) Stock
LR011978 DUCT - AIR $28.90 To Order
Photo Part No Description Price (each) Stock
LR023146 DUCT - AIR $28.90 To Order
LR023146 DUCT - AIR $28.90 To Order
View All

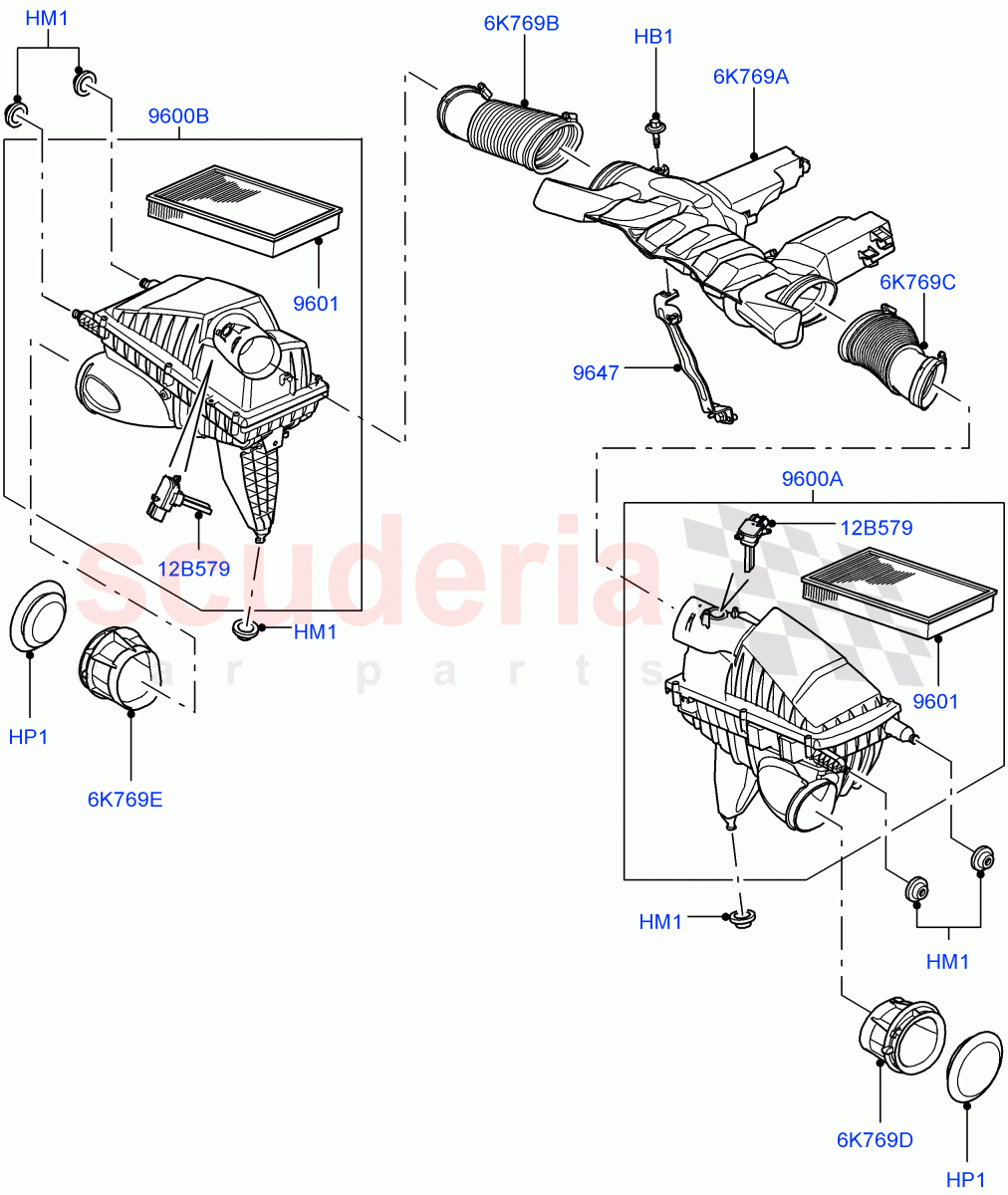

Air Cleaner (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Bracket, Hexagonal Head, M6 X 24MM / From: AA000001
IN STOCK 		$1.47 1
HM1 PJQ500012
MOUNTING - RUBBER
Mounting Rubber / From: AA000001
IN STOCK 		$5.32 6
HP1 LKD500030
PLUG - BLANKING
Blanking / From: AA000001 		$13.10 2
6K769A LR012667
DUCT - AIR
Air Cleaner To Throttle Body, Centre / From: AA000001 / To: AA320746 		$231.53 1
6K769A LR023450
DUCT - AIR
Air Cleaner To Throttle Body, Centre / From: AA320747 / To: BA355860 		$231.53 1
6K769A LR031462
DUCT - AIR
Air Cleaner To Throttle Body, Centre / From: BA355861 		$350.27 1
6K769B LR011410
DUCT - AIR
RH, Air Cleaner To Throttle Body / From: AA000001 / To: AA329434 		$101.27 1
6K769B LR023803
DUCT - AIR
RH, Air Cleaner To Throttle Body / From: AA329435 		$96.43 1
6K769C LR011409
DUCT - AIR
LH, Air Cleaner To Throttle Body / From: AA000001 / To: AA329434 		$101.27 1
6K769C LR023800
DUCT - AIR
LH, Air Cleaner To Throttle Body / From: AA329435 		$98.84 1
6K769D LR011978
DUCT - AIR
LH, Air Cleaner Intake Tube / From: AA000001 		$28.90 1
6K769E LR023146
DUCT - AIR
RH, Air Cleaner Intake Tube / From: AA000001 / To: AA999999 		$28.90 1
6K769E LR023146
DUCT - AIR
RH, Air Cleaner Intake Tube / From: BA000001 		$28.90 1
12B579 LR012073
SENSOR - MASS AIR FLOW
Mass Air Flow Sensor / From: AA000001 		$397.08 2
9600A LR011357
CLEANER - AIR
LH / From: AA000001 		$782.46 1
9600B LR011359
CLEANER - AIR
RH / From: AA000001 		$782.46 1
9601 LR161843
FILTER - AIR CLEANER
From: AA000001
IN STOCK 		$59.56 2
9647 LR014311
BRACKET - AIR DUCT SUPPORT
Centre duct / From: AA000001
IN STOCK 		$22.28 1
