Name: Pulleys And Drive Belts (4.4L DOHC DITC V8 Diesel)
Rating: 4.0 (1 reviews)

View All

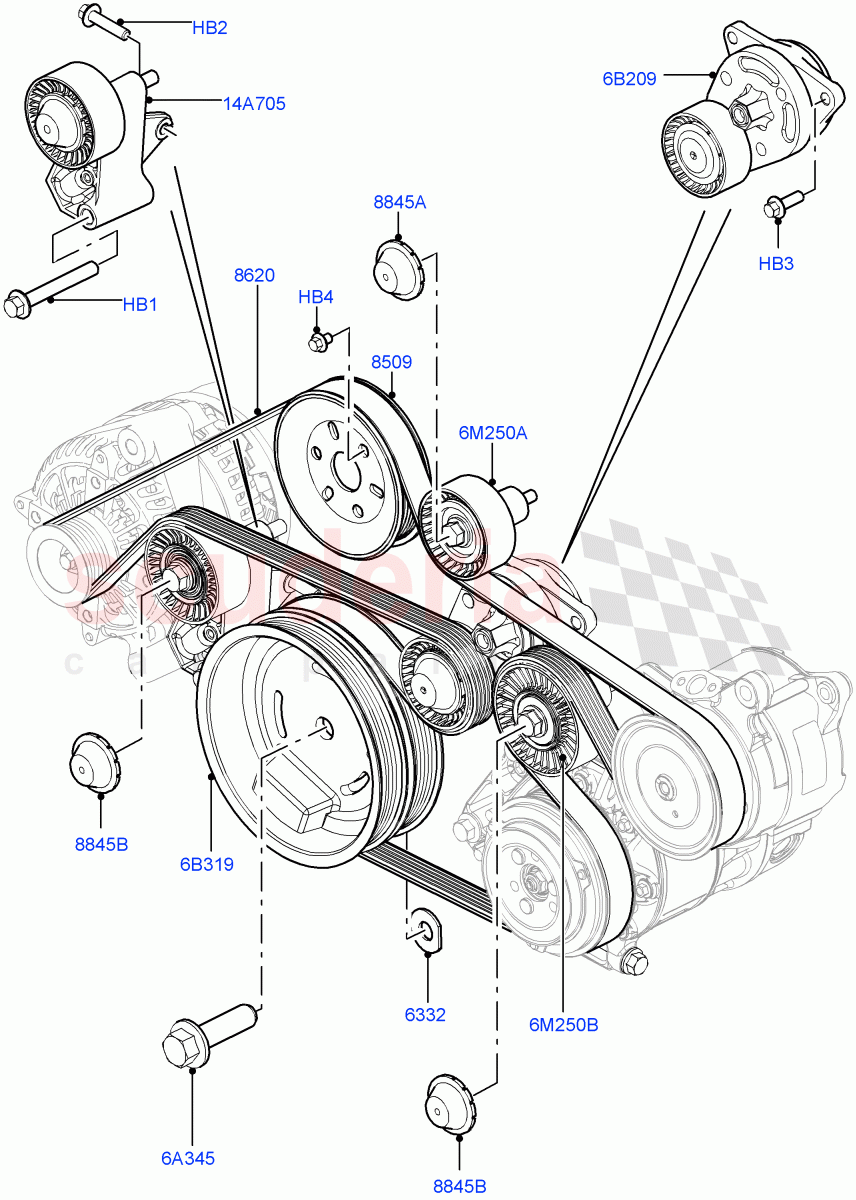

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB110156	BOLT - HEX.HEAD	$2.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FB108076	BOLT	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108256	BOLT	$3.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS108122	BOLT - HEX.HEAD	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023040	WASHER - CRANKSHAFT PULLEY	$62.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022799	PULLEY - WATER PUMP	$50.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036090	BELT - ACCESSORY DRIVE	$86.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022752	BOLT - HEX.HEAD	$10.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022809	TENSIONER - DRIVE BELT	$230.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022805	PULLEY - CRANKSHAFT	$1,144.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022816	CAP - IDLER PULLEY	$3.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022819	CAP - IDLER PULLEY	$4.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025823	BRACKET - ALTERNATOR	$306.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022953	PULLEY - IDLER	$71.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR025083	PULLEY - IDLER	$103.37	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FB110156	BOLT - HEX.HEAD IN STOCK	FB110156 BOLT - HEX.HEAD Hexagonal Head, M10 x 75MM IN STOCK	$2.69	1
HB2	FB108076	BOLT	FB108076 BOLT M8 X 35MM	$0.63	1
HB3	FS108256	BOLT IN STOCK	FS108256 BOLT Hexagonal Head, M8 X 25MM, Tensioner IN STOCK	$3.57	2
HB4	FS108122	BOLT - HEX.HEAD	FS108122 BOLT - HEX.HEAD M8 x 12MM, Pulley, Water Pump	$2.61	3
6A345	LR022752	BOLT - HEX.HEAD	LR022752 BOLT - HEX.HEAD Pulley And Damper Assembly	$10.89	1
6B209	LR022809	TENSIONER - DRIVE BELT	LR022809 TENSIONER - DRIVE BELT	$230.79	1
6B319	LR022805	PULLEY - CRANKSHAFT	LR022805 PULLEY - CRANKSHAFT Pulley And Damper Assembly	$1,144.61	1
6M250A	LR022953	PULLEY - IDLER IN STOCK	LR022953 PULLEY - IDLER 65MM IN STOCK	$71.45	1
6M250B	LR025083	PULLEY - IDLER IN STOCK	LR025083 PULLEY - IDLER 80MM IN STOCK	$103.37	1
14A705	LR025823	BRACKET - ALTERNATOR	LR025823 BRACKET - ALTERNATOR With Idler	$306.69	1
6332	LR023040	WASHER - CRANKSHAFT PULLEY	LR023040 WASHER - CRANKSHAFT PULLEY Pulley - Crankshaft	$62.92	1
8509	LR022799	PULLEY - WATER PUMP	LR022799 PULLEY - WATER PUMP	$50.74	1
8620	LR036090	BELT - ACCESSORY DRIVE	LR036090 BELT - ACCESSORY DRIVE Accessory Drive	$86.79	1
8845A	LR022816	CAP - IDLER PULLEY	LR022816 CAP - IDLER PULLEY idler, Upper	$3.27	1
8845B	LR022819	CAP - IDLER PULLEY	LR022819 CAP - IDLER PULLEY idler, Lower	$4.05	2

Pulleys And Drive Belts (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover (2012-2021) [4.4 DOHC Diesel V8 DITC]
