Pulleys And Drive Belts (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Pulleys And Drive Belts (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR085468 BOLT $3.60 To Order
LR112877 BOLT $3.25 To Order
Photo Part No Description Price (each) Stock
FB110146 BOLT - HEX.HEAD $1.83 To Order
Photo Part No Description Price (each) Stock
LR074131 PIN - RETAINING $3.12 To Order
Photo Part No Description Price (each) Stock
FS108186 SCREW - SOCKET HEAD CAP $2.25 To Order
Photo Part No Description Price (each) Stock
FS105126 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
LR100981 PULLEY - CRANKSHAFT $268.52 To Order
LR122816 PULLEY - CRANKSHAFT $620.75 To Order
LR115702 PULLEY - CRANKSHAFT $245.81 To Order
Photo Part No Description Price (each) Stock
LR108529 DISC - PULLEY $7.78 To Order
Photo Part No Description Price (each) Stock
LR100929 PULLEY - WATER PUMP $74.10 To Order
Photo Part No Description Price (each) Stock
LR100931 BELT - ACCESSORY DRIVE $28.52 IN STOCK
Photo Part No Description Price (each) Stock
LR100930 BELT - ACCESSORY DRIVE $39.29 To Order
Photo Part No Description Price (each) Stock
LR100927 TENSIONER - DRIVE BELT $153.11 To Order
Photo Part No Description Price (each) Stock
LR100928 TENSIONER - DRIVE BELT $169.72 To Order
View All

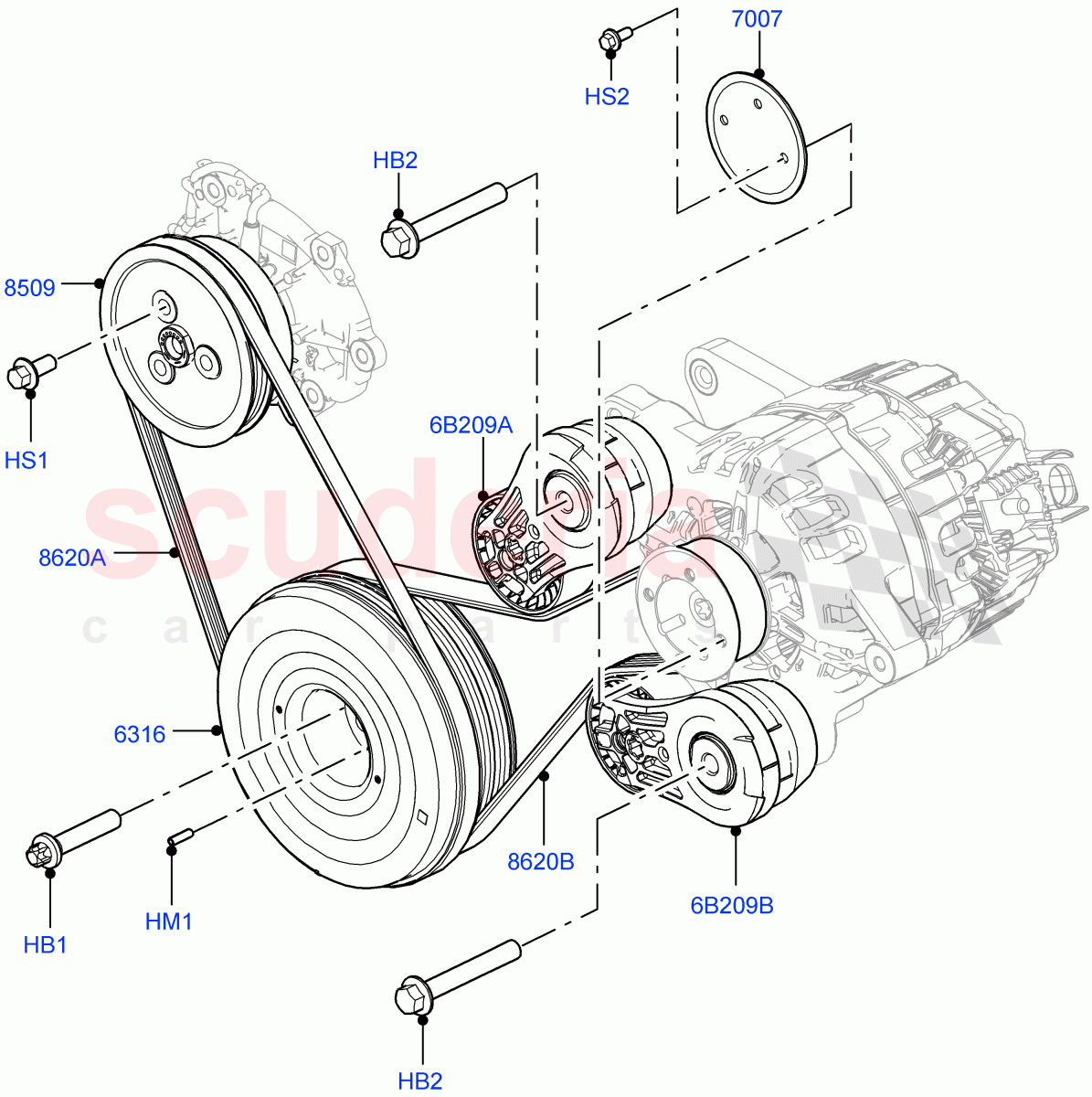

Pulleys And Drive Belts (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR085468
BOLT
Correct For H4P3-6316-B* Crankshaft Damper, For Engine Serial Number Earlier Than ESN 190607Y0202, M10 x 48MM / From: JA000001 		$3.60 4
HB1 LR112877
BOLT
Correct For K4D3-6316-A* Crankshaft Damper, For Engine Serial Number Later Than ESN 190607Y0202, M10 x 70MM / From: JA000001 		$3.25 4
HB2 FB110146
BOLT - HEX.HEAD
Hexagonal Head, M10 x 70MM, Tensioner / From: JA000001 		$1.83 2
HM1 LR074131
PIN - RETAINING 		$3.12 1
HS1 FS108186
SCREW - SOCKET HEAD CAP
M8 x 18MM, Pulley, Water Pump / From: JA000001 		$2.25 3
HS2 FS105126
SCREW
Belt Integrated Starter Generator, M5 X 12MM, Pulley / From: JA000001 		$0.59 4
6B209A LR100927
TENSIONER - DRIVE BELT
Upper / From: JA000001 		$153.11 1
6B209B LR100928
TENSIONER - DRIVE BELT
Lower / From: JA000001 		$169.72 1
6316 LR100981
PULLEY - CRANKSHAFT
For Engine Serial Number Earlier Than ESN 190607Y0202 / From: JA000001 / To: KA520098 		$268.52 1
6316 LR122816
PULLEY - CRANKSHAFT
For Engine Serial Number Earlier Than ESN 190607Y0202 / From: KA520099 		$620.75 1
6316 LR115702
PULLEY - CRANKSHAFT
For Engine Serial Number Later Than ESN 190607Y0202 / From: JA000001 		$245.81 1
7007 LR108529
DISC - PULLEY
Belt Integrated Starter Generator, Pulley / From: JA000001 		$7.78 1
8509 LR100929
PULLEY - WATER PUMP
From: JA000001 		$74.10 1
8620A LR100931
BELT - ACCESSORY DRIVE
Water Pump / From: JA000001
IN STOCK 		$28.52 1
8620B LR100930
BELT - ACCESSORY DRIVE
Belt Integrated Starter Generator / From: JA000001 		$39.29 1
