Heat Shields - Exhaust System (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Heat Shields - Exhaust System (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
AYH100790 NUT - SPECIAL $1.24 To Order
Photo Part No Description Price (each) Stock
WYH500050 NUT - LOCKING $2.67 IN STOCK
Photo Part No Description Price (each) Stock
RYH500690 Nut Enquire To Order
Photo Part No Description Price (each) Stock
KYG500380 SCREW AND WASHER - HEX HEAD $0.36 IN STOCK
Photo Part No Description Price (each) Stock
WEB500690 SHIELD $17.14 To Order
Photo Part No Description Price (each) Stock
KRO500241 SHIELD $135.07 To Order
Photo Part No Description Price (each) Stock
LR013150 SHIELD $95.02 To Order
Photo Part No Description Price (each) Stock
LR013545 SHIELD - EXHAUST PIPE $95.02 To Order
Photo Part No Description Price (each) Stock
KQG500300 HEAT SHIELD $35.71 To Order
Photo Part No Description Price (each) Stock
WEB500012 HEAT SHIELD $157.78 To Order
Photo Part No Description Price (each) Stock
WEB500750 HEAT SHIELD $166.44 To Order
LR020125 HEAT SHIELD - EXHAUST $166.44 To Order
LR043377 HEAT SHIELD - EXHAUST $164.51 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR007463 HEAT SHIELD $20.54 To Order
Photo Part No Description Price (each) Stock
LR007464 HEAT SHIELD $20.54 To Order
View All

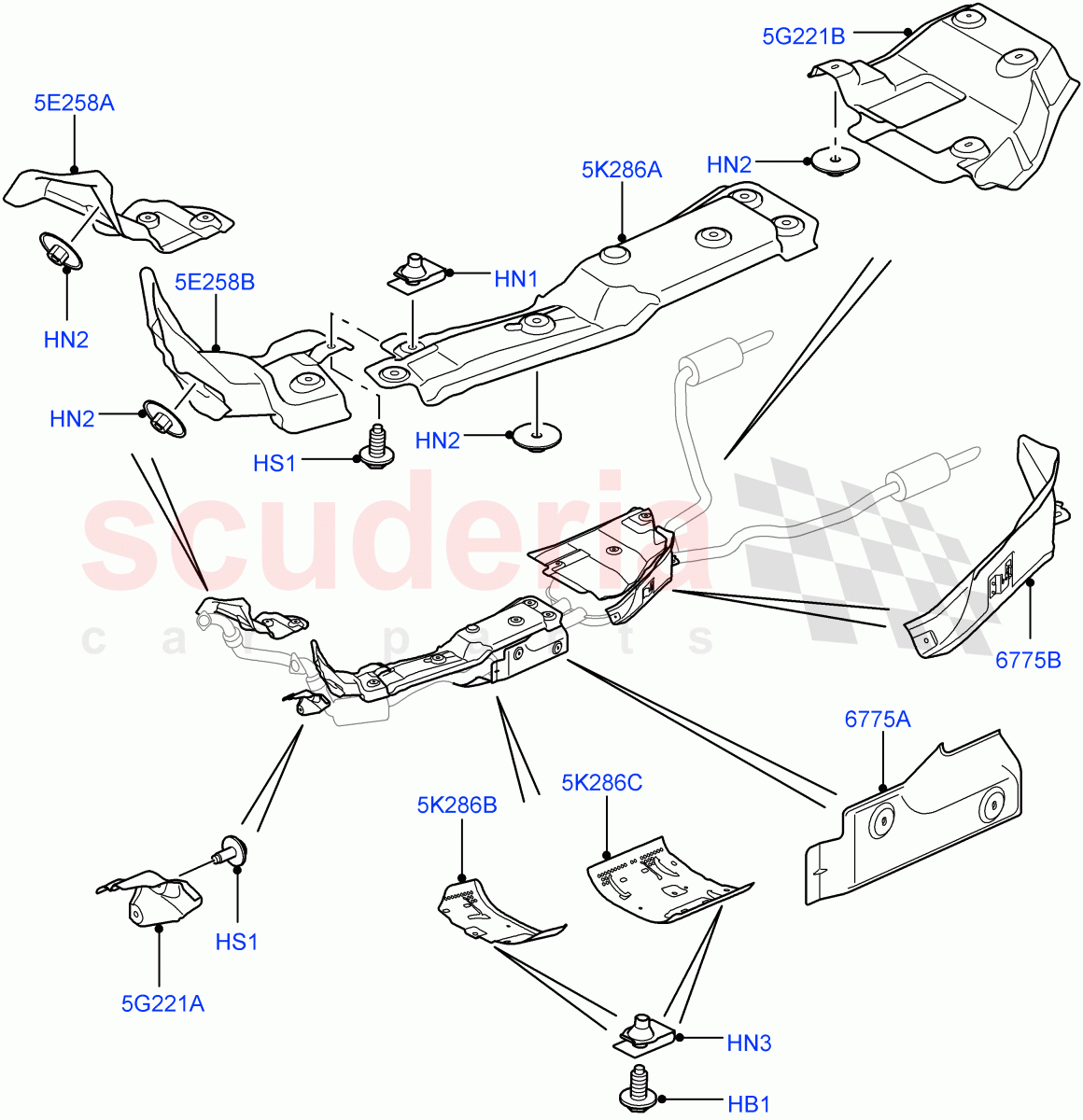

Heat Shields - Exhaust System (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Stage V Plus DPF / Hexagonal Head, M6 x 12MM / From: AA000001
IN STOCK 		$0.52 7
HN1 AYH100790
NUT - SPECIAL
M6 X 0.5-4, Nut "U" Spring / From: AA000001 		$1.24 3
HN2 WYH500050
NUT - LOCKING
M5 / From: AA000001
IN STOCK 		$2.67 13
HN3 RYH500690
Nut
Stage V Plus DPF / U-Nut M6 X 0.8 - 4.0 / From: AA000001 		- 7 Enquire
HS1 KYG500380
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 13.5MM / From: AA000001
IN STOCK 		$0.36 3
5E258A LR013150
SHIELD
RH, Front, Lower / From: AA000001 		$95.02 1
5E258B LR013545
SHIELD - EXHAUST PIPE
LH, Front, Lower / From: AA000001 		$95.02 1
5G221A KQG500300
HEAT SHIELD
LH, Front / From: AA000001 		$35.71 1
5G221B WEB500012
HEAT SHIELD
Centre / From: AA000001 		$157.78 1
5K286A WEB500750
HEAT SHIELD
Intermediate / From: AA000001 / To: AA227207 		$166.44 1
5K286A LR020125
HEAT SHIELD - EXHAUST
Intermediate / From: AA227208 / To: CA745583 		$166.44 1
5K286A LR043377
HEAT SHIELD - EXHAUST
Intermediate / From: CA745584 / To: CA999999 		$164.51 1
5K286A LR076832
HEAT SHIELD - EXHAUST
Intermediate / From: DA000001
IN STOCK 		$98.23 1
5K286B LR007463
HEAT SHIELD
Stage V Plus DPF / Converter Shield, Front / From: AA000001 		$20.54 1
5K286C LR007464
HEAT SHIELD
Stage V Plus DPF / Converter Shield, Rear / From: AA000001 		$20.54 1
6775A WEB500690
SHIELD
Stage IV + DPF Emissions / LH, Intermediate / From: AA000001 		$17.14 1
6775B KRO500241
SHIELD
LH, Intermediate / From: AA000001 		$135.07 1
