Heat Shields - Exhaust System (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Heat Shields - Exhaust System (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
WYH500050 NUT - LOCKING $2.68 IN STOCK
Photo Part No Description Price (each) Stock
AYH100790 NUT - SPECIAL $1.24 To Order
Photo Part No Description Price (each) Stock
ESR1560 NUT - FLANGED $2.77 To Order
Photo Part No Description Price (each) Stock
VYH500030 NUT - FLANGED $0.67 To Order
Photo Part No Description Price (each) Stock
RYH500690 Nut Enquire To Order
Photo Part No Description Price (each) Stock
KYG500380 SCREW AND WASHER - HEX HEAD $0.36 IN STOCK
Photo Part No Description Price (each) Stock
WYR500021 STUD $5.44 To Order
Photo Part No Description Price (each) Stock
WEB500690 SHIELD $17.17 To Order
Photo Part No Description Price (each) Stock
KRO500231 SHIELD $29.71 To Order
Photo Part No Description Price (each) Stock
LR013809 HEAT SHIELD $131.08 To Order
Photo Part No Description Price (each) Stock
LR013150 SHIELD $95.19 To Order
Photo Part No Description Price (each) Stock
LR013545 SHIELD - EXHAUST PIPE $95.19 To Order
LR069248 SHIELD - EXHAUST PIPE $65.25 To Order
Photo Part No Description Price (each) Stock
KQG500300 HEAT SHIELD $35.77 To Order
Photo Part No Description Price (each) Stock
WEB500750 HEAT SHIELD $166.73 To Order
LR020125 HEAT SHIELD - EXHAUST $166.73 To Order
LR043377 HEAT SHIELD - EXHAUST $164.80 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
WEB500144 HEAT SHIELD $92.99 To Order
Photo Part No Description Price (each) Stock
LR007463 HEAT SHIELD $20.58 To Order
Photo Part No Description Price (each) Stock
LR007464 HEAT SHIELD $20.58 To Order
View All

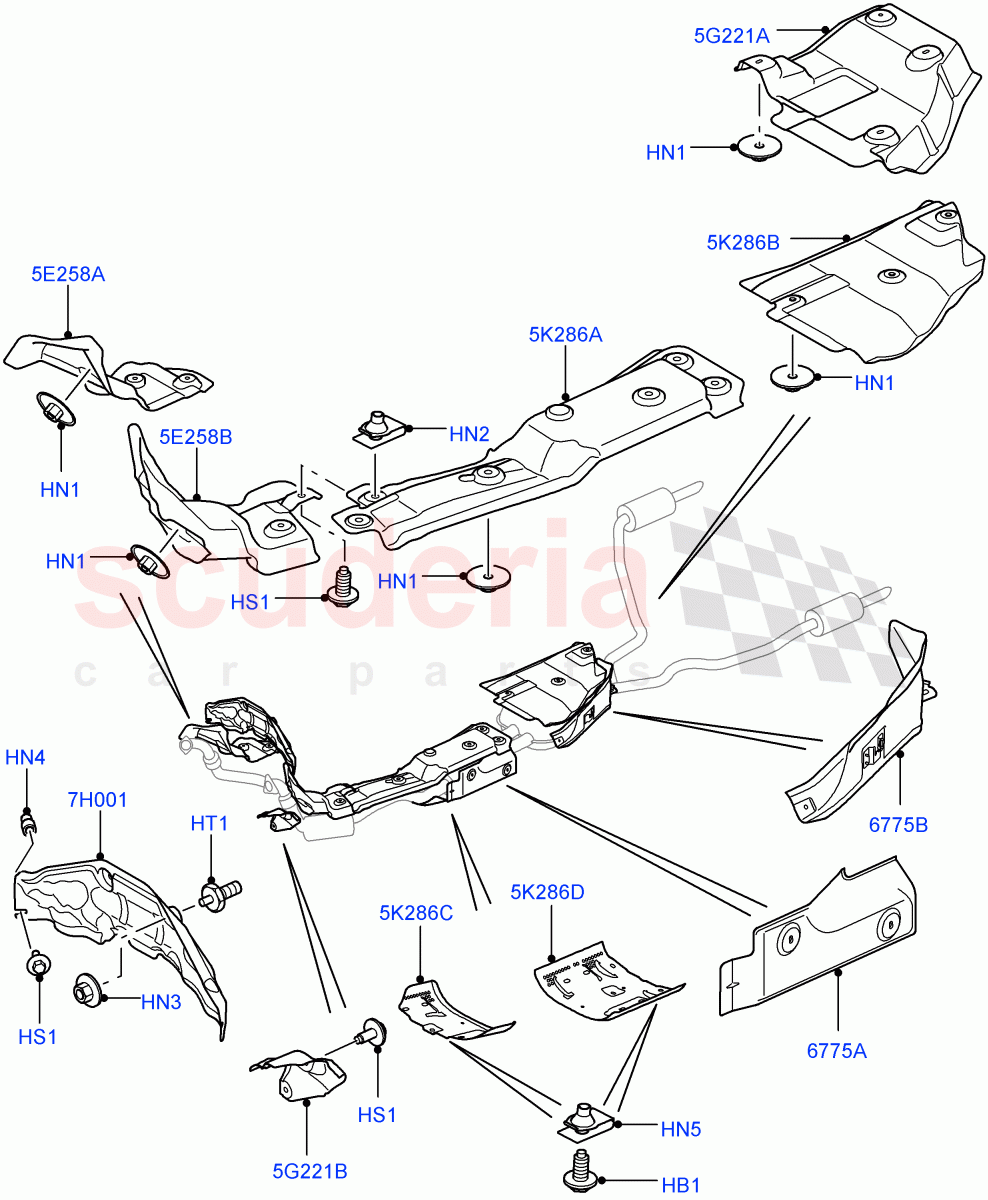

Heat Shields - Exhaust System (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Proconve L6 Emissions / Hexagonal Head, M6 x 12MM / From: AA000001
IN STOCK 		$0.52 7
HN1 WYH500050
NUT - LOCKING
M5 / From: AA000001
IN STOCK 		$2.68 13
HN2 AYH100790
NUT - SPECIAL
M6 X 0.5-4, Nut "U" Spring / From: AA000001 		$1.24 3
HN3 ESR1560
NUT - FLANGED
M6 / From: AA000001 		$2.77 2
HN4 VYH500030
NUT - FLANGED
M6 / From: AA000001 		$0.67 2
HN5 RYH500690
Nut
Proconve L6 Emissions / U-Nut M6 X 0.8 - 4.0 / From: AA000001 		- 7 Enquire
HS1 KYG500380
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 13.5MM, Striker, Upper Tailgate / From: AA000001
IN STOCK 		$0.36 2
HT1 WYR500021
STUD
M6 / From: AA000001 		$5.44 2
5E258A LR013150
SHIELD
RH, Front, Lower / From: AA000001 		$95.19 1
5E258B LR013545
SHIELD - EXHAUST PIPE
LH, Front, Lower / From: AA000001 / To: FA999999 		$95.19 1
5E258B LR069248
SHIELD - EXHAUST PIPE
LH, Front, Lower / From: GA000001 		$65.25 1
5G221B KQG500300
HEAT SHIELD
LH, Front / From: AA000001 		$35.77 1
5K286A WEB500750
HEAT SHIELD
Intermediate / From: AA000001 / To: AA522702 		$166.73 1
5K286A LR020125
HEAT SHIELD - EXHAUST
Intermediate / From: AA522703 / To: CA620737 		$166.73 1
5K286A LR043377
HEAT SHIELD - EXHAUST
Intermediate / From: CA620738 / To: CA999999 		$164.80 1
5K286A LR076832
HEAT SHIELD - EXHAUST
Intermediate / From: DA000001 / To: EA709728
IN STOCK 		$98.40 1
5K286A LR060755
HEAT SHIELD - EXHAUST
Intermediate / From: EA709729 / To: FA765645 		$90.66 1
5K286A LR076832
HEAT SHIELD - EXHAUST
Intermediate / From: FA765646 / To: FA999999
IN STOCK 		$98.40 1
5K286A LR069247
SHIELD - EXHAUST MANIFOLD HEAT
Intermediate / From: GA000001 		$95.28 1
5K286B WEB500144
HEAT SHIELD
Centre / From: AA000001 		$92.99 1
5K286C LR007463
HEAT SHIELD
Proconve L6 Emissions / Converter Shield, Front / From: AA000001 		$20.58 1
5K286D LR007464
HEAT SHIELD
Proconve L6 Emissions / Converter Shield, Rear / From: AA000001 		$20.58 1
7H001 LR013809
HEAT SHIELD
Front, Upper / From: AA000001 		$131.08 1
6775A WEB500690
SHIELD
Proconve L6 Emissions / LH, Intermediate / From: AA000001 		$17.17 1
6775B KRO500231
SHIELD
LH / From: AA000001 		$29.71 1
